    John Deere LX255 - engine

    John Deere LX255 lawn tractor photo
    1999 - 2001   LX200 Series
    Lawn tractor
    Next model:John Deere LX266
    more John Deere LX255 specifications...






    Engine Detail:

     Kohler CV15S-41571
     gasoline
     1-cylinder
     air-cooled
     426 cc [26ci ]
    Bore/Stroke:3.55x2.64 inches [90 x 67 mm]
    Power:15 hp [11.2 kW]
    Air cleaner:paper with foam pre-cleaner
    Compression:8.5:1
    Rated RPM:3600
    Torque:25.3 lb-ft [34.3 Nm]
    Torque RPM:2400
    Starter volts:12
    Oil capacity:1.9 qts [1.8 L]
    Sparkplug gap:0.040 inches [1.016 mm]

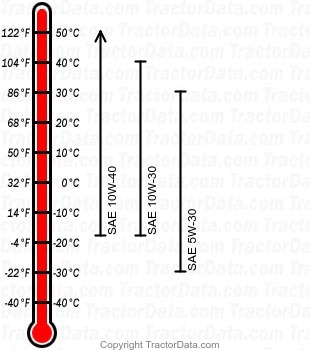

    LX255 gasoline engine oil chart
