Lawn Tractors > Cub Cadet > 1512

Cub Cadet 1512

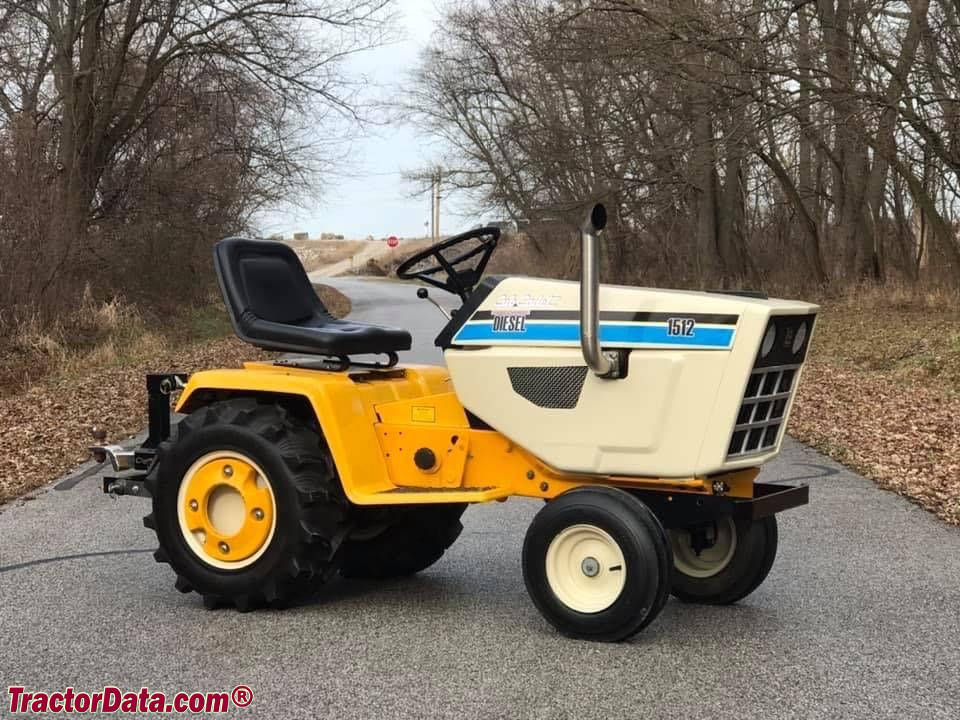

Cub Cadet 1512 lawn tractor photo
1985 - 1987
Garden tractor
Series map:
1512
15.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Built in Brownsville, Tennessee, USA
Cub Cadet 1512 Engine
15HP Kubota 606cc 3-cyl diesel
Fuel tank4 gal
15.1 L
Engine details ...
Cub Cadet 1512 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Dual disc brakes
Open operator station.
Photos
Cub Cadet 1512
Cub Cadet 1512 photos...
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase44 inches
111 cm
Weight880 lbs
399 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Cub Cadet 1512 attachments
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
Attachment details ...
1512 Serial Numbers
Location:Serial number plate on the left side of the tractor frame, above the footrest.
1985737625
1986747225
1987756300

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
References
1512 references literature
Home Tractors published in 1985, by Cub Cadet
