Cub Cadet 1220 Engine


No photo available
1987
Lawn tractor
Series:12151220
Engine Detail

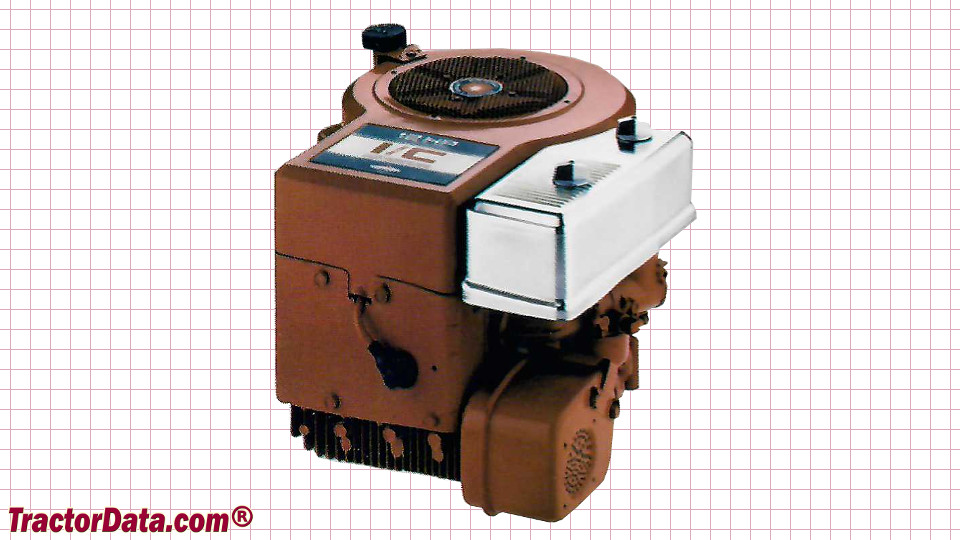

Briggs & Stratton 281707
gasoline
1-cylinder
air-cooled
Displacement:465 cc
28.4 ci
Bore/Stroke:3.4375x3.0625 inches
87 x 78 mm
Power:12 hp
8.9 kW
Rated RPM:3400
Starter volts:12
Oil capacity:1.5 qts
1.4 L
Sparkplug:Champion RCJ-8
Sparkplug gap:0.030 inches
0.762 mm
