Wheel Horse 244-5

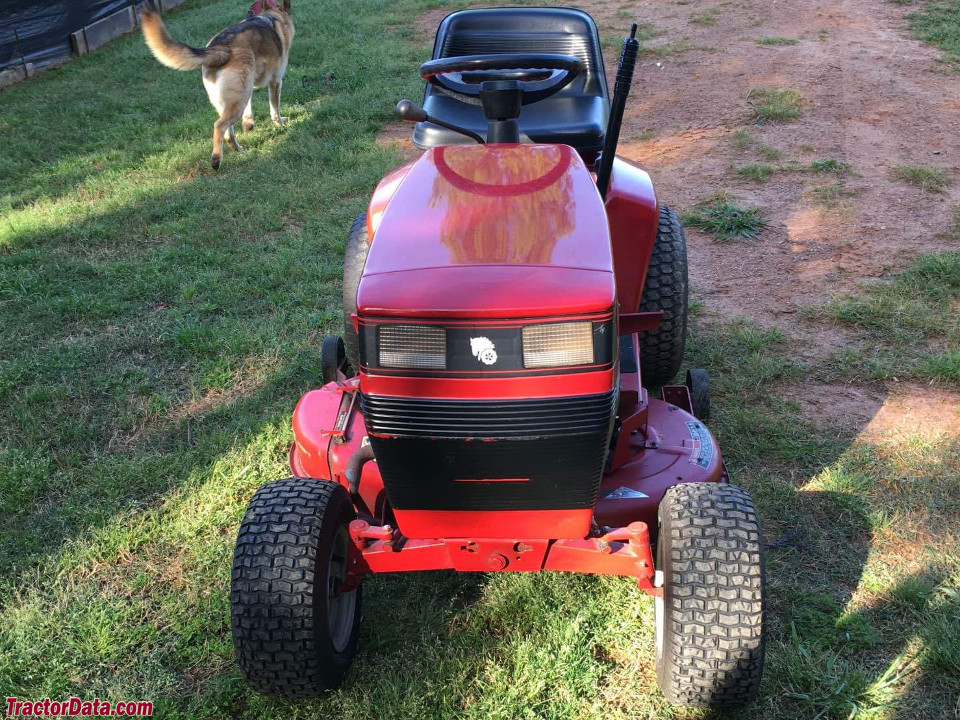

Wheel Horse 244-5 lawn tractor photo
1991 - 1993
240 Series
Lawn tractor
Production
ManufacturerWheel Horse (a part of Toro)
TypeLawn tractor
Variants
244-5gear-drive
244-Hhydrostatic
Wheel Horse 244-5 Engine
14HP Onan 388cc 1-cyl gasoline
Fuel tank1.5 gal
5.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase47.9 inches
121 cm
Weight443 lbs
200 kg
Front tire16x6.50-8
Rear tire20x10.00-10
Full dimensions and tires ...
Wheel Horse 244-5 attachments
32" mid-mount mower deck
snowblower
blade
Attachment details ...
244-5 Serial Numbers
19911000001 (22-14O501)
19922000001 (22-14O502)
19933900001 (72040)

How to read a serial number table...
244-5 Serial Location
Wheel Horse 244-5 serial number location
Serial number plate on the tractor's rear fender deck, below the seat.
Electrical
Groundnegative
Charging systemalternator
Charging amps13
Battery CCA200
Battery volts12
