Lawn Tractors > Wheel Horse > 414-8

Wheel Horse 414-8 Transmission



Wheel Horse 414-8 lawn tractor photo
1986 - 1989
400 Series
Garden tractor
Transmission
ManufacturerWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse

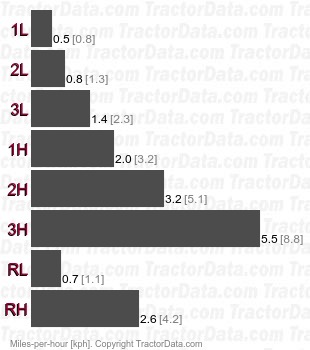

Speeds
414-8 belt-driven gear speeds

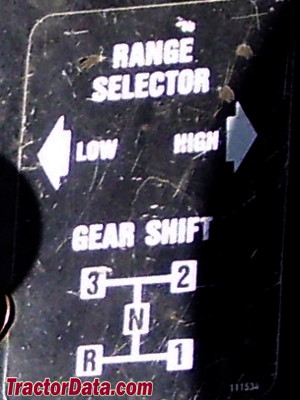

Shift Pattern
Wheel Horse 414-8 transmission controls

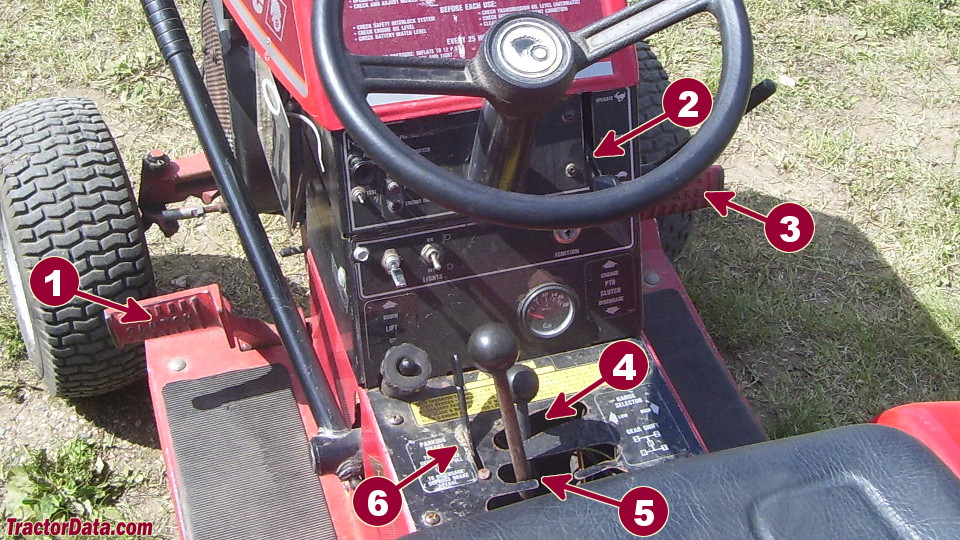

414-8 Transmission Controls
Wheel Horse 414-8 transmission controls
1Clutch
2Throttle
3Brake
4Range shift
5Gear shift
6Parking brake
