Wheel Horse B-100 Engine


Wheel Horse B-100 lawn tractor photo
1974 - 1977
B Series
Garden tractor
Series:B-80B-100
Engine Detail
Kohler K241AS
gasoline
1-cylinder
air-cooled
Displacement:391 cc
23.9 ci
Bore/Stroke:3.25x2.88 inches
83 x 73 mm
Power:10 hp
7.5 kW
Rated RPM:3600
Starter volts:12

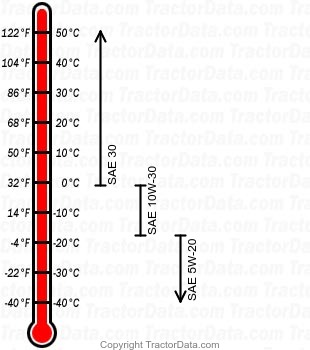

Oil capacity:1.5 qts
1.4 L
Sparkplug gap:0.025 inches
0.635 mm
Point gap:0.020 inches
0.508 mm
Wheel Horse B-100  engine photo
