Kubota TG1860


Kubota TG1860 lawn tractor photo
1998 - 2003
TG Series
Lawn tractor
Production
Manufacturer:Kubota
Type:Lawn tractor
Variants
TG1860:diesel
TG1860G:gasoline
Kubota TG1860 Engine
18HP Kubota 719cc 3-cyl diesel
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:power
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Capacity
Fuel:4 gal
15.1 L
Power Take-off (PTO)
Front PTO:independent
Clutch:electric
Kubota TG1860 attachments
48" mid-mount mower deck
54" mid-mount mower deck
snowblower
blade
Attachment details ...

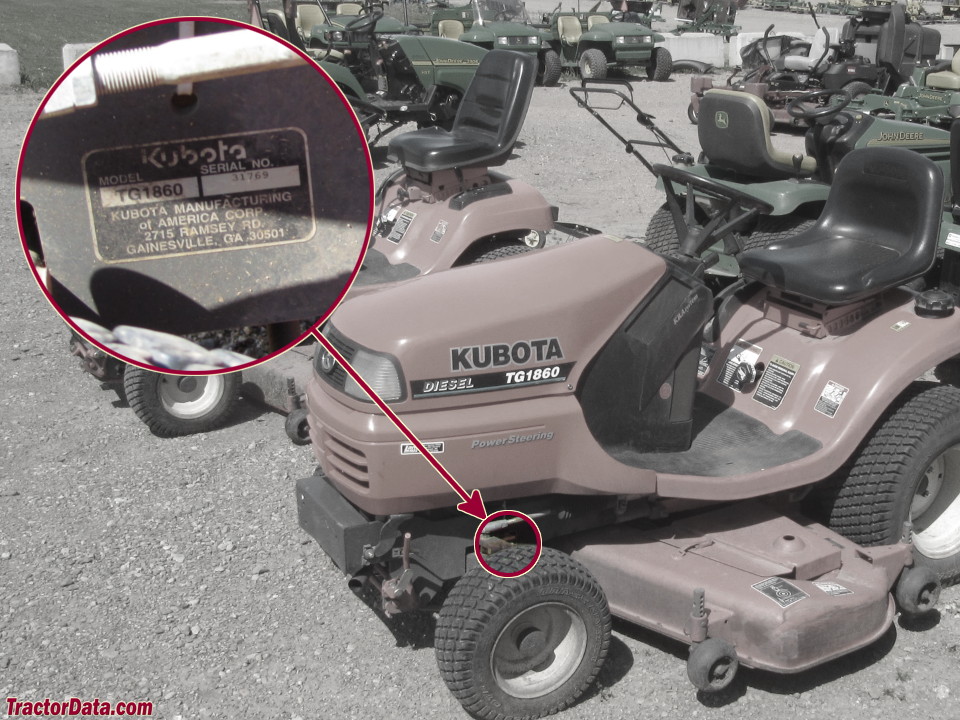

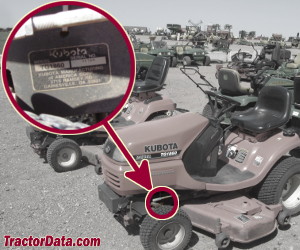

TG1860 Serial Numbers
Location:Left side of tractor frame.
photo of TG1860 serial number

Electrical
Ground:negative
Battery
Number:1
Volts:12
