| | 1983 - 1988 |
| G Series | | Garden tractor |
|
Series map:
G3200
G4200
10.0hp
12.0hp
| Engine Detail |
| Kubota Z400 |
| diesel |
| 2-cylinder |
| liquid-cooled |
| Displacement | 399 cc
24.4 ci
|
| Bore/Stroke | 2.52x2.45 inches
64 x 62 mm
|
| Power (gross) | 10 hp
7.5 kW
|
| Pre-heating | glow plugs
|
| Rated RPM | 3200
|
| Starter volts | 12
|
| Starter power | 0.94 hp
0.7 kW
|

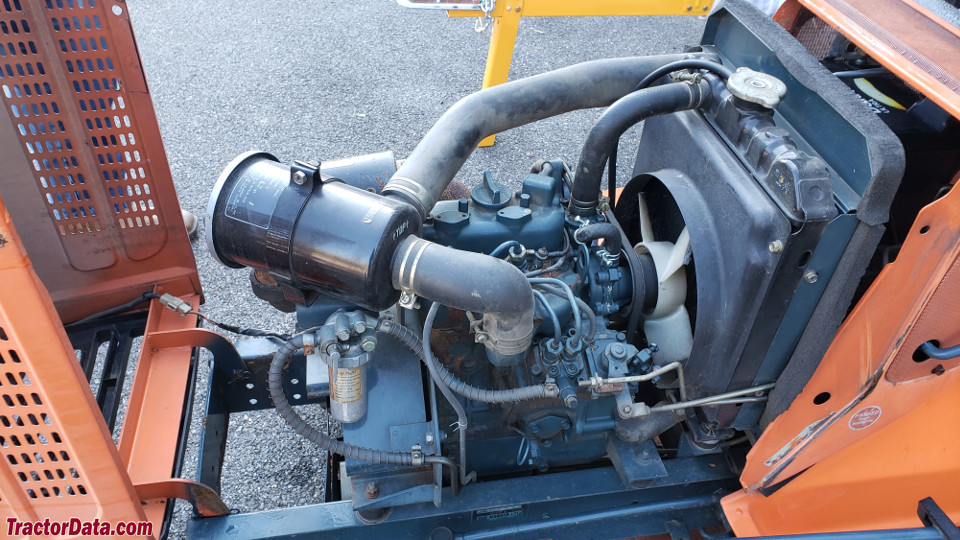

| Kubota G3200 Engine |
 |
| Image courtesy of J. McCracken |
