Lawn Tractors > Wheel Horse > D-250

Wheel Horse D-250 Engine



Wheel Horse D-250 lawn tractor photo
1976 - 1981
D Series
Garden tractor
Gutbrod built
Series map:
D-200
D-250
19.9hp
19.9hp
Engine Detail
Renault 800-01
gasoline
4-cylinder
liquid-cooled
Displacement852 cc
52 ci
Power19.9 hp
14.8 kW
Air cleaneroil bath
Rated RPM3000
Firing order1-3-4-2
Starter volts12
SparkplugChampion L87YC
Sparkplug gap0.020 inches
0.508 mm
Point gap0.018 inches
0.457 mm
Engine Oil

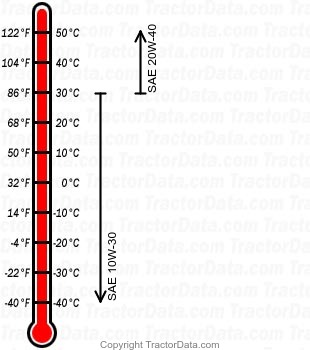

D-250 gasoline engine oil chart
Oil capacity2.6 qts
2.5 L
