    Cub Cadet 682

    Cub Cadet 682 lawn tractor photo
    1979 - 1985   IH 82 Series
    Model years
    Garden tractor
    Larger:Cub Cadet 782
    Smaller:Cub Cadet 582






    Production:

    Manufacturer:International Harvester
    Factory:Louisville, Kentucky, USA


    Variants:

    782:hydraulics
    682:manual lift


    Cub Cadet 682 Engine:

       Kohler 691cc 2-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:4 gal [15.1 L]


    Rear Hitch:

    Type:sleeve hitch (optional)


    Power Take-off (PTO):

    Front PTO:independent
    Clutch:electric


    Dimensions & Tires:

    Wheelbase:44 inches [111 cm]
    Weight:660 lbs [299 kg]
    Front tire:16x6.50-8
    Rear tire:23x10.50-12
    full dimensions and tires ...


    Cub Cadet 682 attachments:

     38" mid-mount mower deck
     44" mid-mount mower deck
     50" mid-mount mower deck
    all 682 attachments ...

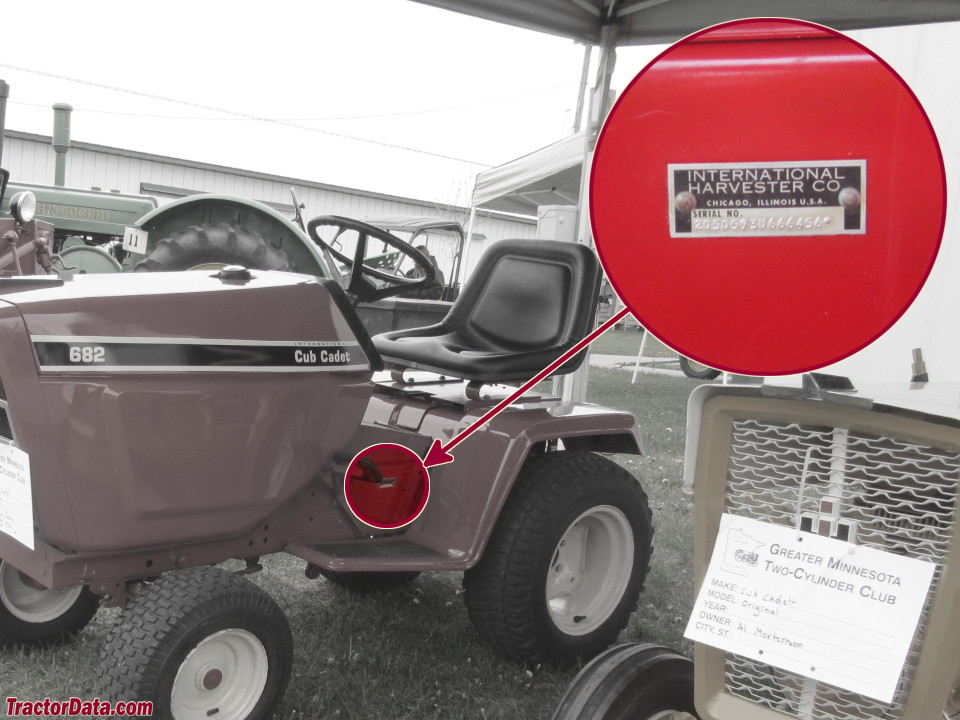

    682 Serial Numbers:

    Location:Left side of frame.

    - Serial numbers unknown -



    Cub Cadet 682 Power:

    Engine (gross):17 hp [12.7 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:integral wet disc
    Cab:Open operator station.


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:15


    Battery:

    Number:1
    Cold-cranking amps:200
    Volts:12
    Amp-hours:32
