Lawn Tractors > Cub Cadet > 1650

Cub Cadet 1650 Engine



Cub Cadet 1650 lawn tractor photo
1974 - 1980
Quietline Series
Garden tractor
Series map:
1450
1650
14.0hp
16.0hp
Engine Detail
Kohler K341AQS
gasoline
1-cylinder
air-cooled
Displacement588 cc
35.89 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power (gross)16 hp
11.9 kW
Fuel systemKohler side-draft carburetor
Air cleanerdry
Rated RPM3400
Idle RPM1800-3600
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

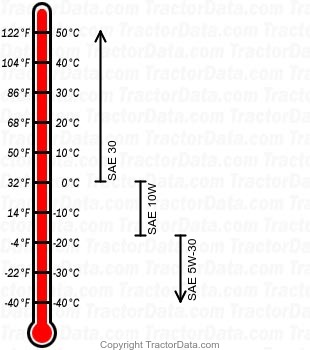

1650 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
