Cub Cadet 129


Cub Cadet 129 lawn tractor photo
1971 - 1974
1X8/1X9 Series
Garden tractor
Series map:
128
129
149
12.0hp
12.0hp
14.0hp
Production
ManufacturerCub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA
Variants
129hydrostatic
128gear
Cub Cadet 129 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank2 gal
7.6 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Mechanical disc brakes
Open operator station.
Tractor hitch
Typesleeve hitch (optional)
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical
Dimensions & Tires
Wheelbase44 inches
111 cm
Front tire4.80/4.00-8
Rear tire23x8.50-12
Full dimensions and tires ...
Cub Cadet 129 attachments
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
snowblower
Attachment details ...

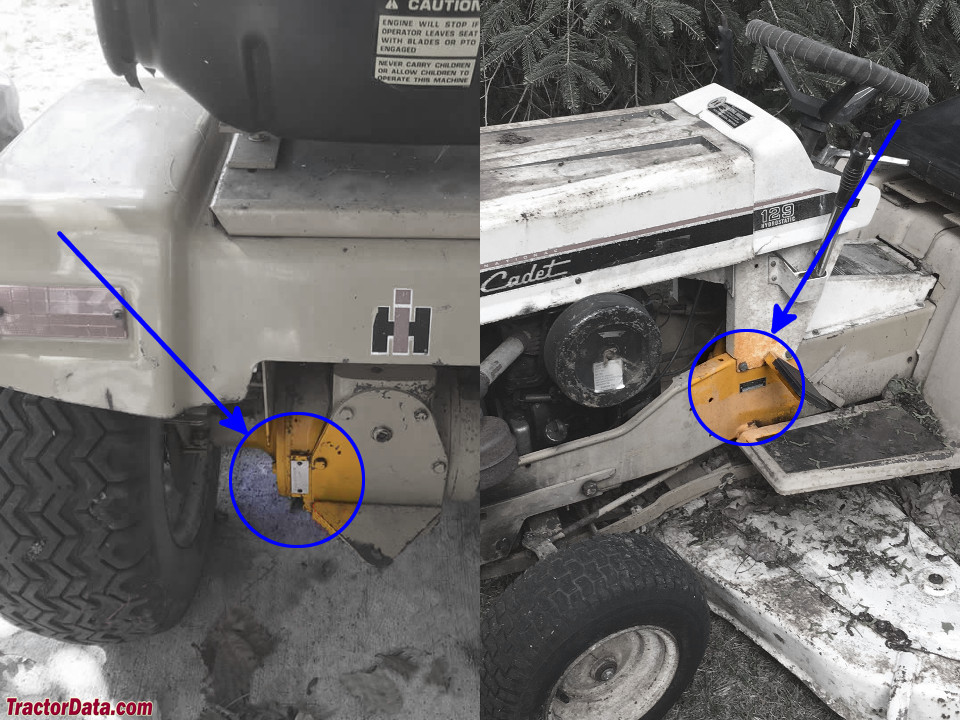

129 Serial Number Location
Cub Cadet 129 serial number location
Tractor's rear-drive housing, or the left side of the tractor frame (after February 1974).
129 Serial Numbers
1971400001
1972417643
1973457305
1974495749
Final529811

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemDelco-Remy generator
Charging amps15
Battery volts12
References
129 references literature
for more mower go CUB CADET published in 1971, by Cub Cadet
Operator's Manual published in 1974, by Cub Cadet
