Lawn Tractors > Cub Cadet > 147

Cub Cadet 147

Cub Cadet 147 lawn tractor photo
1969 - 1971   1X6/1X7 Series
Garden tractor
Next model:Cub Cadet 149
Series back:Cub Cadet 127






Production:

Manufacturer:International Harvester
Factory:Louisville, Kentucky, USA


Cub Cadet 147 Engine:

   14HP Kohler 512cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:2 gal [7.6 L]


Rear Hitch:

Type:Cub Cadet three-point*Optional


Power Take-off (PTO):

Clutch:mechanical dry disc
Front RPM:3600


Dimensions & Tires:

Wheelbase:43 inches [109 cm]
Weight:740 lbs [335 kg]
Front tire:16x6.50-8
Rear tire:23x8.50-12
full dimensions and tires ...


Cub Cadet 147 attachments:

 38" mid-mount mower deck
 42" mid-mount mower deck
 48" mid-mount mower deck
 snowblower
 blade
all 147 attachments ...


147 Serial Numbers:

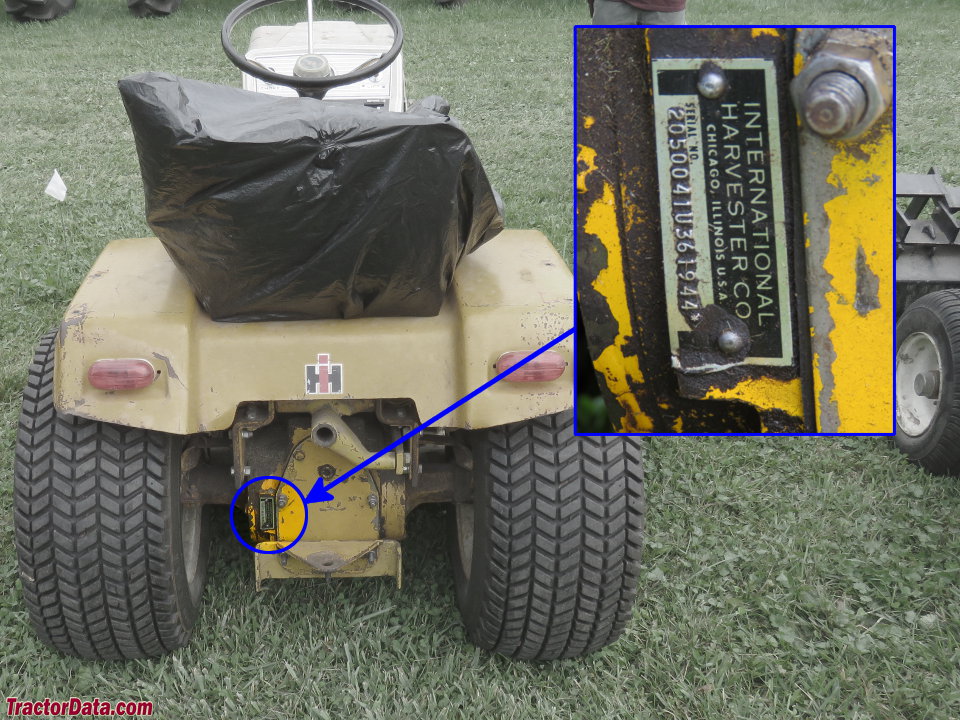

Location:Serial plate on rear of tractor.
photo of 147 serial number

1969: 316816
1970: 322858
1971: 373301
Final: 400000

how to read serial numbers...



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical disc
Cab:Open operator station with padded seat.


Electrical:

Ground:negative
Charging system:generator
Charging amps:15


Battery:

Number:1
Volts:12


Page information:
