| | Production: |
| Manufacturer: | Cub Cadet (a part of International Harvester)
|
| Factory: | Louisville, Kentucky, USA
|
| | |
| 7HP Kohler 262cc 1-cyl gasoline |
| full engine details ... | | | Capacity: |
| Fuel: | 1.25 gal [4.7 L]
|
| | Rear Hitch: |
| Type: | Cub Cadet three-point (optional)
|
| | |
| Rear PTO: | transmission
|
| Rear RPM: | 515 (0.937)
|
| Clutch: | mechanical dry disc
|
| Front RPM: | 3600
|
| | |
| Wheelbase: | 43 inches [109 cm]
|
| Weight: | 570 lbs [258 kg]
|
| Front tire: | 4.80/4.00-8
|
| Rear tire: | 6-12
|
| full dimensions and tires ... | | | |
| 38" mid-mount mower deck |
| 42" mid-mount mower deck |
| 48" mid-mount mower deck |
| snowblower |
| blade |
| all 73 attachments ... | | | 73 Serial Numbers: |

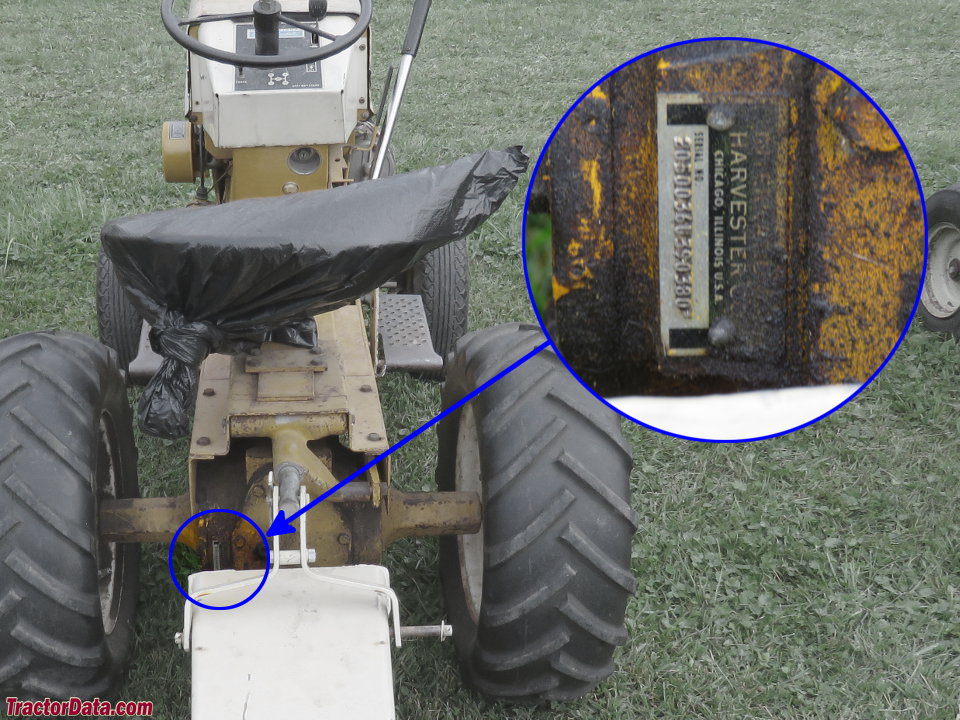

| Location: | Serial plate on rear of tractor.
|
photo of 73 serial number
1969: 307000
1970: 322858
1971: 373301
Final: 400000
how to read serial numbers...
|
|
|
|
| | Mechanical: |
| Transmission: | 3-speed gear
|
| Transmission: | 6-speed
|
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | dry disc
|
| Cab: | Open operator station with steel pan seat.
|
| | Electrical: |
| Ground: | negative
|
| Charging system: | generator
|
| Charging amps: | 15
|
| | Battery: |
| Number: | 1
|
| Volts: | 12
|
