Lawn Tractors > Sabre > 2254HV

Sabre 2254HV

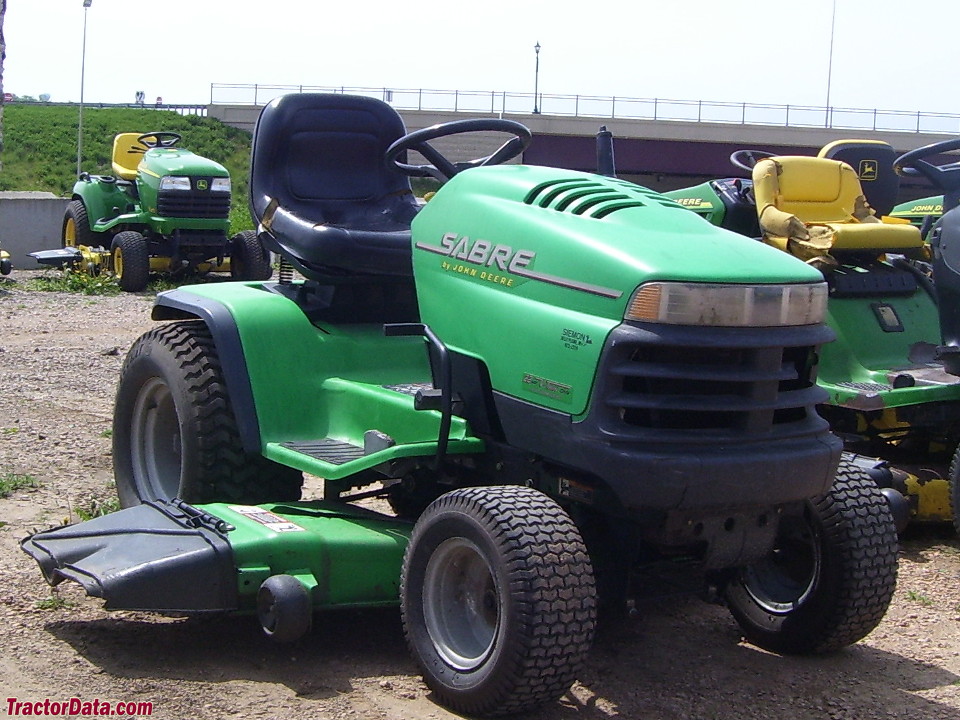

Sabre 2254HV lawn tractor photo
1998 - 1999   Garden Series
Garden tractor
Series next:Sabre 2354HV
Series back:Sabre 2148HV






Production:

Manufacturer:John Deere
Factory:Greeneville, Tennessee, USA


Sabre 2254HV Engine:

   22HP Briggs & Stratton 626cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:3 gal [11.4 L]


Rear Hitch:

Type:sleeve hitch (optional)


Power Take-off (PTO):

Front PTO:independent
Clutch:electric


Dimensions & Tires:

Wheelbase:48.5 inches [123 cm]
full dimensions and tires ...


Sabre 2254HV attachments:

 54" mid-mount mower deck
 snowblower
 blade
all 2254HV attachments ...


2254HV Serial Numbers:

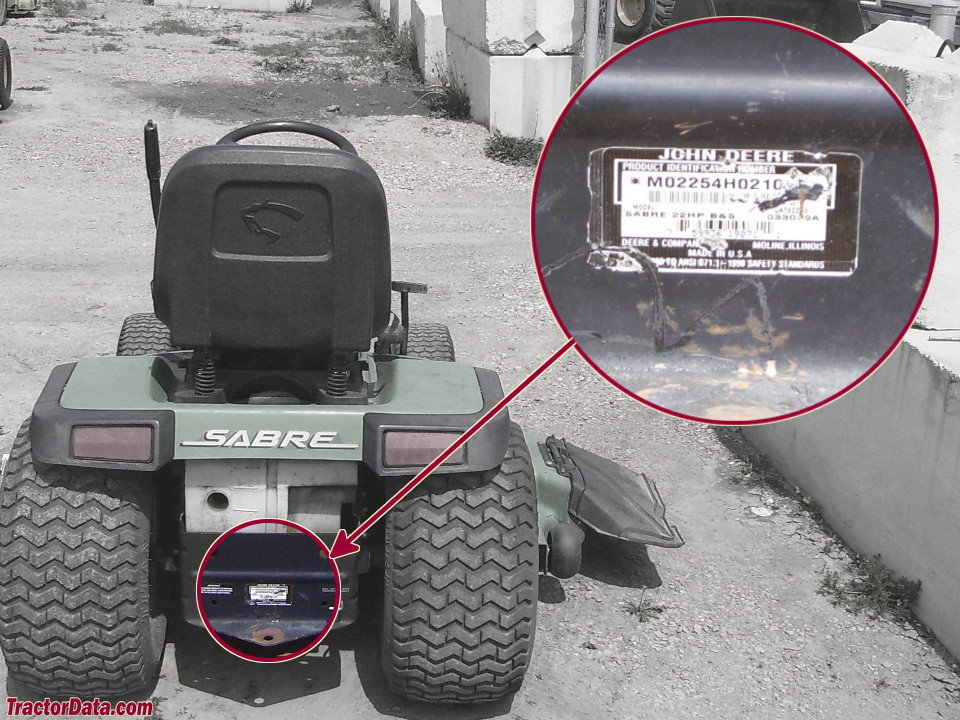

Location:Rear of tractor above drawbar.
photo of 2254HV serial number

1998: 010001
1999: 020001

how to read serial numbers...



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual sector-and-pinion
Brakes:disc
Cab:Open operator station.


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging amps:16


Battery:

Number:1
Cold-cranking amps:340
Volts:12
Group:BCI U1
