Lawn Tractors > Massey Ferguson > 7

Massey Ferguson 7

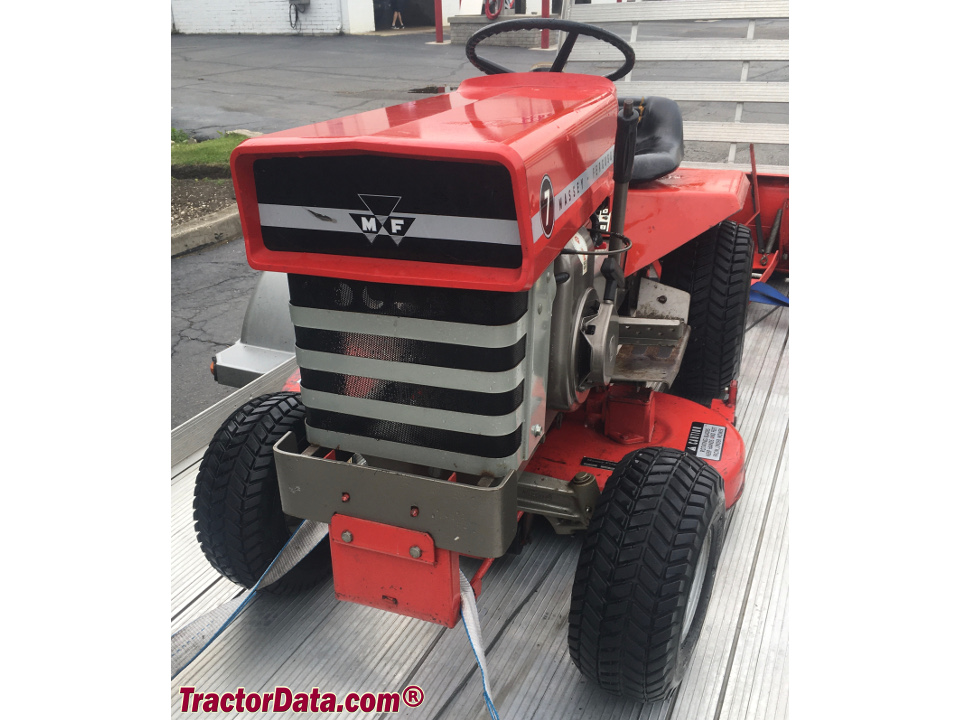

Massey Ferguson 7 lawn tractor photo
1968 - 1973
Lawn tractor






Production:

Distributor:Massey Ferguson
Manufacturer:AMF
Factory:Des Moines, Iowa, USA


Massey Ferguson 7 Engine:

   7HP Tecumseh 245cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:1 gal [3.8 L]


Dimensions & Tires:

Wheelbase:41 inches [104 cm]
Front tire:6.00x15
Rear tire:8.50x18
full dimensions and tires ...


Massey Ferguson 7 attachments:

 34" mid-mount mower deck
all 7 attachments ...


7 Serial Numbers:

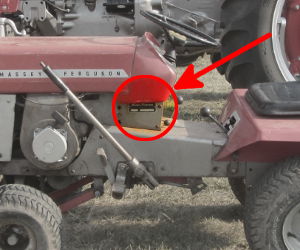

Location:Serial number plate on the left side of the Massey Ferguson 7, below dashboard.
photo of 7 serial number

1968: 00001 (Gear Recoil)
1968: 200001 (Gear Electric)
1968: 400001 (Hydrostatic)
1969: 01148 (Gear Recoil)
1969: 204257 (Gear Electric)
1969: 400054 (Hydrostatic)
1970: 03067 (Gear Recoil)
1970: 211417 (Gear Electric)
1970: 401486 (Hydrostatic)
1971: 06902 (Gear Recoil)
1971: 223307 (Gear Electric)
1971: 404172 (Hydrostatic)
1973: 10979 (Gear Recoil)
1973: 237556 (Gear Electric)

how to read serial numbers...



Mechanical:

Transmission:3-speed gear
Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
