Allis Chalmers T-816

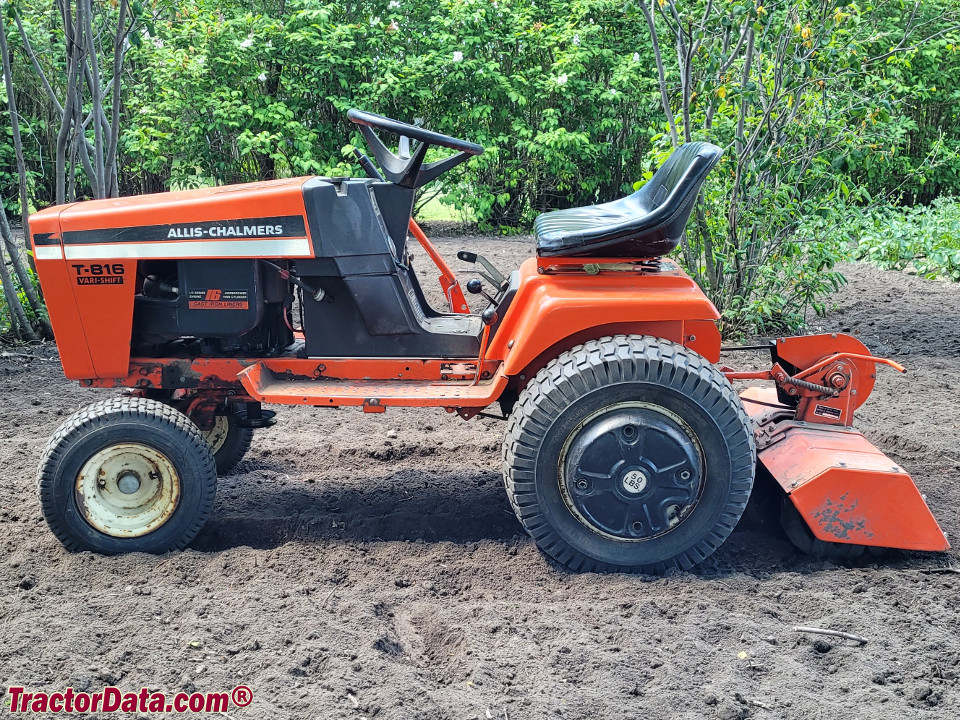

Allis Chalmers T-816 lawn tractor photo
1982 - 1985
T-800 Series
Garden tractor
Series map:
T-811
T-816
T-818
11.0hp
16.0hp
18.0hp
Production
ManufacturerAllis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $3,529 in 1984
Allis Chalmers T-816 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank2.2 gal
8.3 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase48.3 inches
122 cm
Weight485 lbs
219 kg
Front tire15x6.00-6
Rear tire23x10.50-12
Full dimensions and tires ...
Allis Chalmers T-816 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
T-816 Serial Numbers
T-816 Serial Location
Allis Chalmers T-816 serial number location
Serial number plate under rear fender deck, forward of the battery.
Electrical
Groundnegative
Battery volts12
References
T-816 references literature
900 & T-800 Series Gardenpower published in 1982, by Allis-Chalmers
1983 Lawn and Garden Line published by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers
