Allis Chalmers T-816 Transmission



Allis Chalmers T-816 tractor photo
1982 - 1985
T-800 Series
Garden tractor
Series map:
T-811
T-816
T-818
11.0hp
16.0hp
18.0hp
Transmission
TransmissionVari-Shift
Typebelt-driven gear
Gears3 forward and 1 reverse
Clutchmechanical idler pulley
Oil capacity1.2 qts
1.1 L
Three-speed gear transmission with variable speed lever.
Speeds

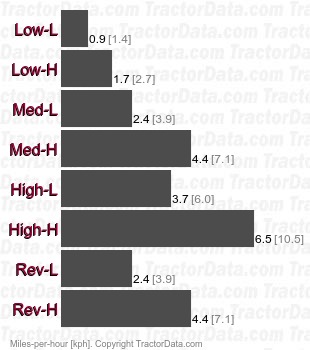

T-816 Vari-Shift belt-driven gear speeds

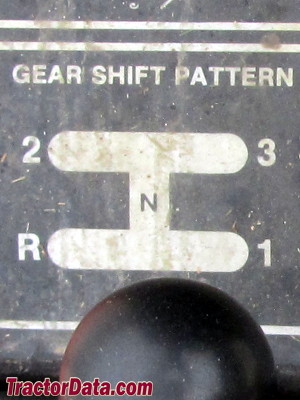

Shift Pattern
Allis Chalmers T-816 transmission controls

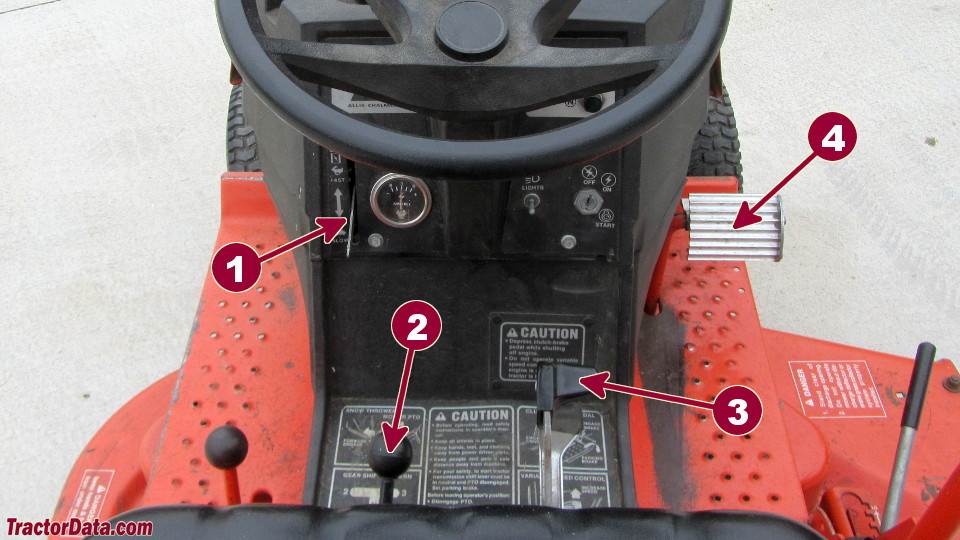

T-816 Transmission Controls
Allis Chalmers T-816 transmission controls
1Throttle
2Gear shift
3Variator
4Clutch/brake
