Lawn Tractors > Allis Chalmers > 310

Allis Chalmers 310

Allis Chalmers 310 lawn tractor photo
1971 - 1973   300 Series
Garden tractor
Next model:Allis Chalmers 410
Series next:Allis Chalmers 312





The Allis-Chalmers 310 can be referenced in the Simplicity catalog by codes 1600044 and 1600045 (electric pto/lift).


Production:

Manufacturer:Allis Chalmers
Factory:Lexington, South Carolina, USA


Allis Chalmers 310 Engine:

   10HP Kohler 391cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:2.25 gal [8.5 L]


Power Take-off (PTO):

Front PTO:independent
Clutch:manual
 electric (optional)
Front RPM:3600


Dimensions & Tires:

Wheelbase:48.1 inches [122 cm]
Weight:794 lbs [360 kg]
Front tire:4.80-4.00x8
Rear tire:23-8.50x12
full dimensions and tires ...


Allis Chalmers 310 attachments:

 42" mid-mount mower deck
all 310 attachments ...


310 Serial Numbers:

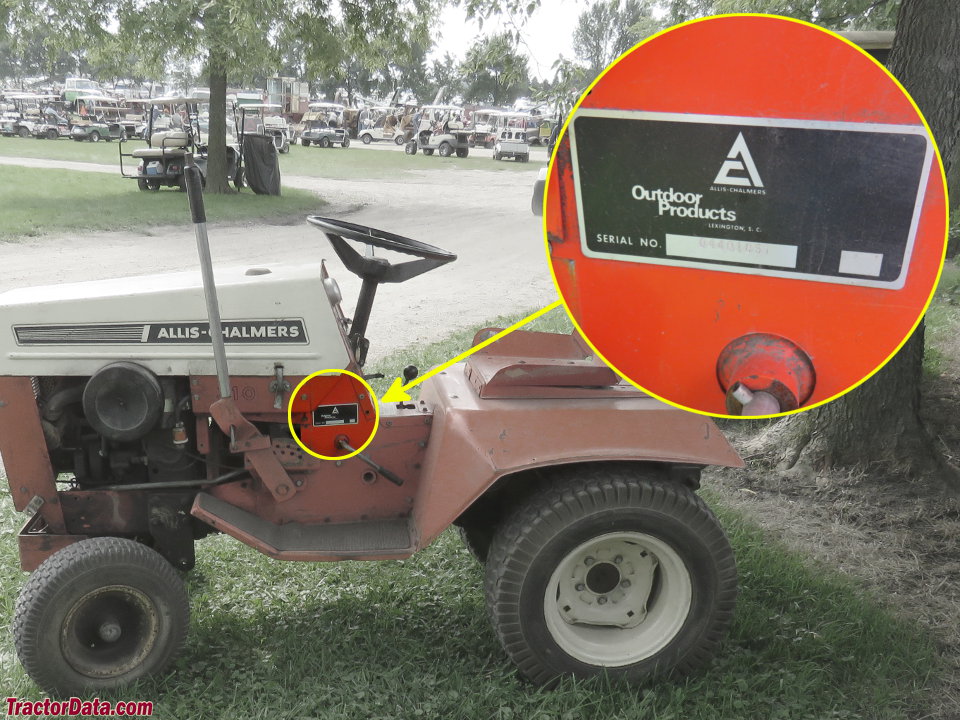

Location:Serial number tag on the left side of the Allis-Chalmers 310 tractor frame.
photo of 310 serial number


how to read serial numbers...



Links:

SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com


Mechanical:

Transmission:21-speed
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative
Charging system:alternator
Charging amps:15


Battery:

Number:1
Volts:12
