Lawn Tractors > Allis Chalmers > B-207

Allis Chalmers B-207

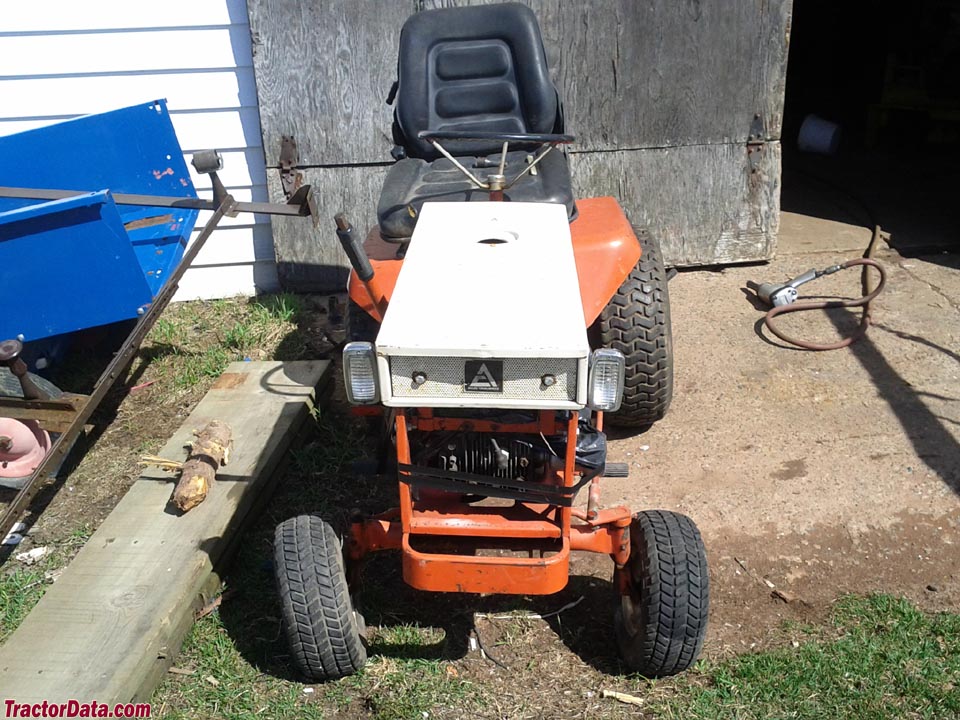

Allis Chalmers B-207 lawn tractor photo
1968 - 1970
Next model:Allis Chalmers B-208






Production:

Manufacturer:Allis Chalmers
Factory:Lexington, South Carolina, USA


Variants:

B-207E:electric start


Allis Chalmers B-207 Engine:

   7HP Briggs & Stratton 275cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:0.88 gal [3.3 L]


Dimensions & Tires:

Wheelbase:41 inches [104 cm]
Weight:530 lbs [240 kg]
Front tire:5.30-4.80x8
Rear tire:9.50x8
full dimensions and tires ...


Allis Chalmers B-207 attachments:

 36" mid-mount mower deck
all B-207 attachments ...


B-207 Serial Numbers:

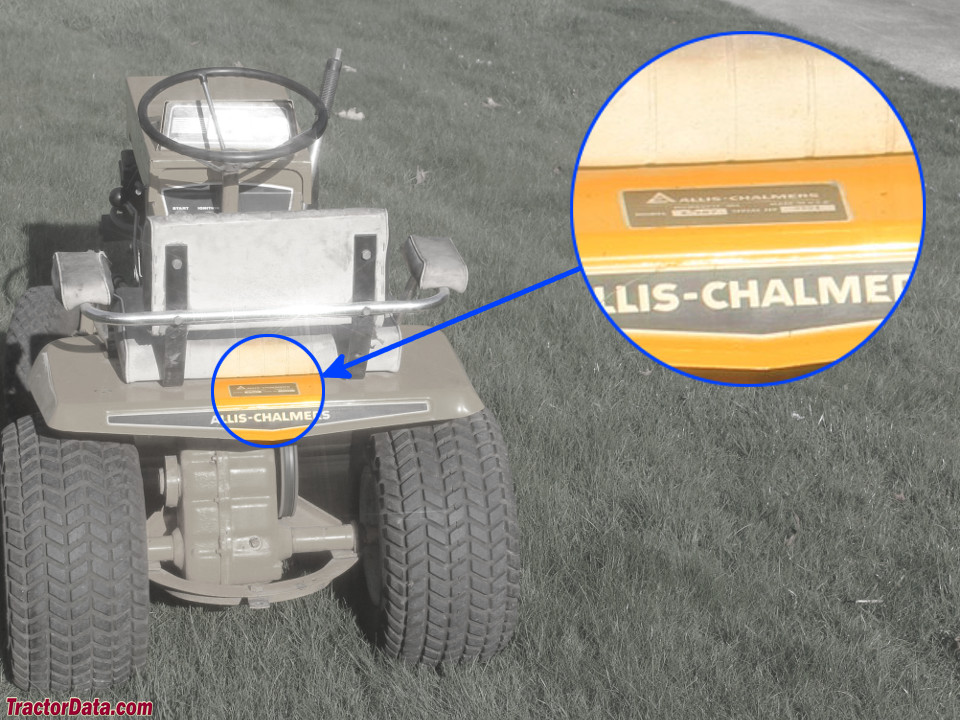

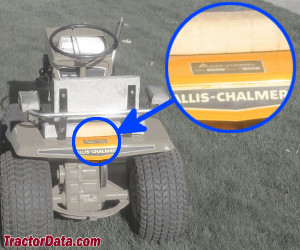

Location:Serial plate on rear of tractor, under the seat.

- Serial numbers unknown -



Links:

Allis-Chalmers B-207: information, photos and old advertising literature at SimpleTractors.com


Mechanical:

Transmission:3-speed gear
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Battery:

Number:1
Volts:12
