Lawn Tractors > John Deere > 300

John Deere 300 Attachments



John Deere 300 tractor photo
1975 - 1977
300 Series
Garden tractor
Series map:
300
16.0hp
Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
The 300 was compatible with the John Deere model 33 tiller, with 26-, 34-, or 42-inch width. The 33 tiller requires the installation of the rear PTO kit (BM15851) on the tractor.
38" Mower deck
John Deere 41
38 inches
96 cm
Total width: 49.25 inches
125 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 3.5 inch
3 to 8 cm
111 lbs
50 kg
46" Mower deck
John Deere 48
46 inches
116 cm
Total width: 57 inches
144 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 3.5 inch
3 to 8 cm
144 lbs
65 kg
John Deere 300 with model 33 tiller.
John Deere 300 with model 33 tiller.
Photos courtesy of Perley Holmes
John Deere 300 with model 46 snow blower.
John Deere 300 with model 46 snow blower.
Photos courtesy of Caleb Christensen
Illustration of rear PTO installtion on the John Deere 300 series.
Illustration of rear PTO installtion on the John Deere 300 series.

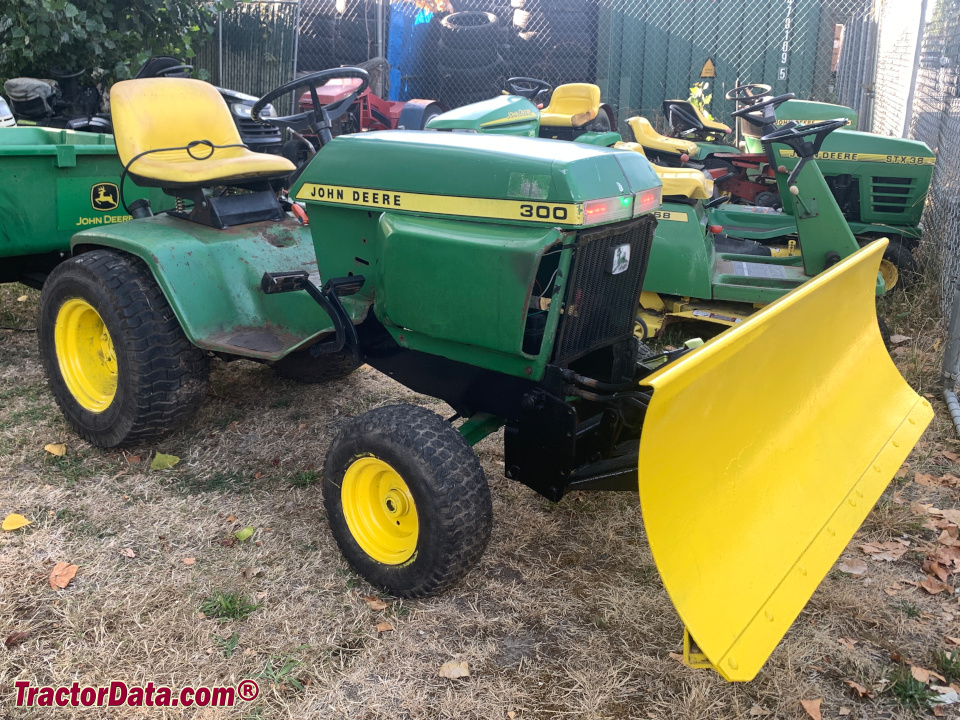

54" Blade
John Deere 54
front-mount
54 inches width
137 cm
18 inches height
45 cm
15 inches lift
38 cm
Angling 30°
3.5 inches cut
8 cm
140 lbs
63 kg
hydraulic-lift
manual-angle
46" Snow blower
John Deere 49
46 inches width
116 cm
one-stage
front-mount
hydraulic-lift
197 lbs
89 kg
320 Loader
built by Brantly
500 lbs lift (full at pin)
226 kg
750 lbs breakout
340 kg
55° dump
12 inches reach (dumped)
30 cm
9 inches reach (ground)
22 cm
71 inches height (at pin)
180 cm
51 inches clearance (dumped)
129 cm
62 inches clearance (level)
157 cm
boom cyl: 2 inches
5 cm
boom rod: 1.125 inches
2 cm
bucket cyl: 2 inches
5 cm
bucket rod: 1.125 inches
2 cm
weight: 316 lbs
143 kg
Bucket width: 40 inches
101 cm
Bucket width: 48 inches
121 cm
Bucket width: 60 inches
152 cm
John Deere 330 Backhoe
Backhoe typeJohn Deere 330 Backhoe
Weight500 lbs
226 kg
Transport height72 inches
182 cm
Bucket width8 inches
20 cm
 13 inches
33 cm
Digging depth72 inches
182 cm
Reach from pivot108 inches
274 cm
Loading height49.5 inches
125 cm
Swing Arc135°
Bucket force3000 lbs
1360 kg
Dipperstick force1560 lbs
707 kg
