Ford 4000 HD
| | 1960 - 1964 |
|
| 4140 Series | | Industrial tractor |
|
| Production |
| Manufacturer | Ford
|
| Type | Industrial tractor
|
| Variants |
| 41401 | 4-speed, no 3-point or pto
|
| 41403 | 4-speed
|
| 41404 | Select-O-Speed, no 3-point or PTO
|
| 41405 | Select-O-Speed
|
| 41406 | Select-O-Speed, 540/1000 pto
|
| Ford 4000 HD Power |
| Engine (gross) | 62.5 hp
46.6 kW
|
| Mechanical |
| Chassis | 4x2 2WD
|
| Steering | power
|
| Brakes | differential mechanical shoe
|
| Cab | Open operator station.
|
| Capacity |
| Fuel | 17 gal
64.3 L
|
| Hydraulic system | 5 gal
18.9 L
|
| Rear diff. | 11.5 qts
10.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 5 gal
18.9 L
|
| Pump flow | 17.5 gpm
66.2 lpm
|
| Steering flow | 8 gpm
30.3 lpm
|
| Steering press. | 1250 psi
86.2 bar
|
| Tractor hitch |
| Rear Type | I OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | independent *Independent PTO available with Select-o-Speed transmission.
|
| Rear RPM | 540
|
| | 540/1000
|
| Electrical |
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6 (gas)
|
| | 12 (diesel)
|
| Battery AH | 80 (gas)
|
| | 135 (diesel)
|

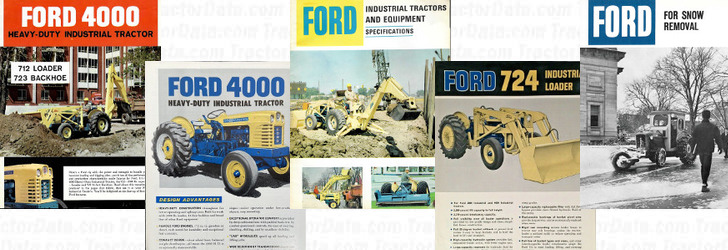

| References |
 |
| Ford 4000 Heavy-Duty Industrial Tractor published in 1962 |
| Industrial Tractors and Equipment published in 1964, by Ford |
| 724 Industrial Loader published in 1963, by Ford |
| Ford for Snow Removal published in 1964 |
| Page information |
| Contact: Peter Easterlund |
| Updated on December 27, 2021 |
| Copyright 2021 TractorData LLC |
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
