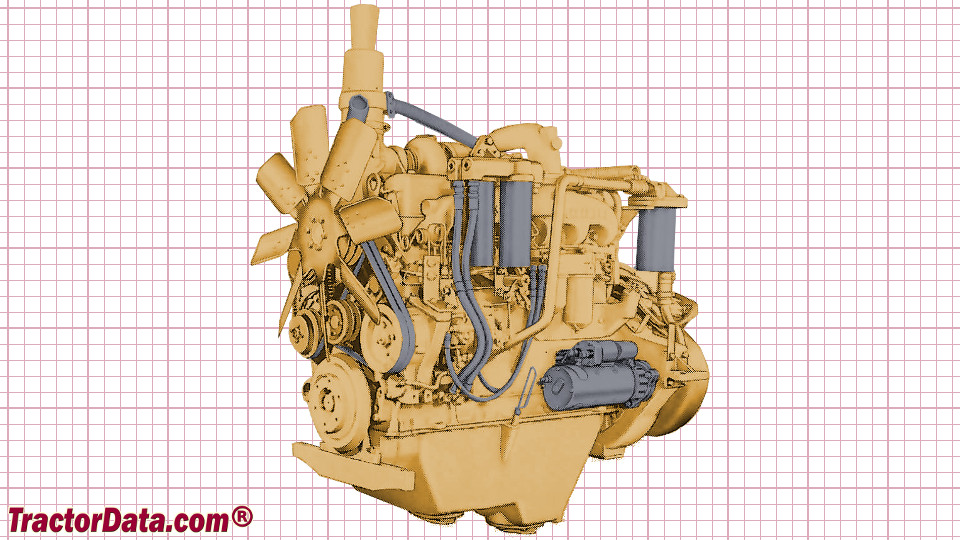

Allis Chalmers HD-11E Engine
|
|
| Engine Detail | |
| Allis Chalmers 11000 | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Engine power rated varied depending on exact model configuration. Allis claimed 240 HP as the maximum power of the engine. In the HD-11EP it was rated at 150 HP. It was rated at 140 HP in the HD-11EC and 130 HP (at 1800 RPM) in the HD-11E. | |
| Displacement | 516 ci 8.5 L |
| Bore/Stroke | 4.4375x5.5625 inches 113 x 141 mm |
| Power | 150 hp 111.9 kW |
| HD-11E Rated RPM | 1800 |
| HD-11EP Rated RPM | 2050 |
| Starter | electric |
| Starter volts | 24 |
| HD-11E Oil capacity | 11 qts 10.4 L |
| HD-11EP Oil capacity | 19 qts 18.0 L |
| Coolant capacity | 44 qts 41.6 L |
| Allis Chalmers HD-11E Engine | |
 |
