Tractors > Allis Chalmers > 190 Beachmaster

Allis Chalmers 190 Beachmaster - transmission

Allis Chalmers 190 Beachmaster industrial tractor photo
1964 - 1972
Industrial tractor
more Allis Chalmers 190 Beachmaster specifications...






Transmission:

Transmission:Power Director
Type:two-speed power shift
Gears:8 forward and 2 reverse
Clutch:dry disc
Oil capacity:32 qts [30.3 L]
 38 qts [36.0 L] (S/N 23000 and up)
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.

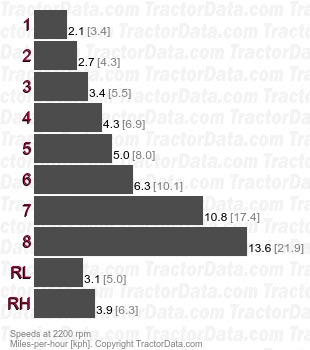

Speeds:With 15.5-38 rear tires.
190 Beachmaster Power Director two-speed power shift speeds
