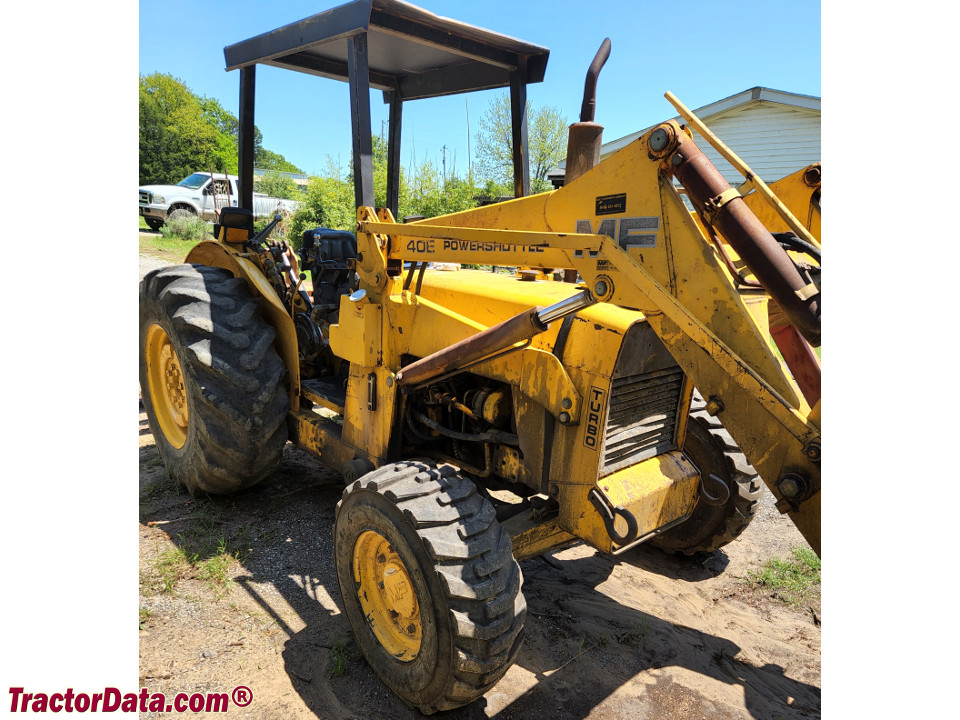

Massey Ferguson 40E
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Industrial tractor | |
| Massey Ferguson 40E Engine | |
| Perkins 2.5L 3-cyl diesel | |
| Fuel tank | 12.7 gal 48.1 L |
 Engine details ... | |
| Massey Ferguson 40E Transmissions | |
| 6-speed mechanical shuttle | |
| 8-speed partially synchronized | |
| 4-speed power shuttle | |
| 8-speed gear | |
 Transmission details ... |
| Massey Ferguson 40E Power | |
| Engine | 58 hp 43.3 kW |
| PTO (claimed) | 44.5 hp 33.2 kW |
| Mechanical | |
| Two-wheel drive | |
| Final drives | outboard planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two- or four-post ROPS. Optional cab. | |
| Hydraulics | |
| Pressure | 2750 psi 189.6 bar |
| Pump flow | 9.5 gpm 36.0 lpm |
| Tractor hitch | |
| Rear Type | I |
| II *With power shuttle transmission. | |
| Control | position and drive control |
| Rear lift | 3407 lbs 1545 kg |
| 5289 lbs*With power shuttle transmission. 2399 kg | |
| Power Take-off (PTO) | |
| Rear PTO | live |
| independent *With power shuttle transmission. | |
| Rear PTO Type | 540 (1.375) |
| 540/1000 | |
| Engine RPM | 540@1788 |
| 1000@1900 | |
| Dimensions & Tires | |
| Wheelbase | 75.2 inches 191 cm |
| Weight | 4500 to 9576 pounds |
| Front tire | 7.5/8x16 |
| Rear tire | 14.9x24 |
 Full dimensions and tires ... | |
| Massey Ferguson 40E attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

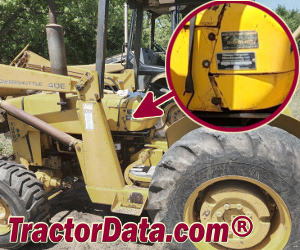

| 40E Serial Number Location | |
 | |
| Serial number plate on the side of the instrument panel. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 |
| Battery CCA | 550 |
| Battery volts | 12 |
| Battery AH | 96 |

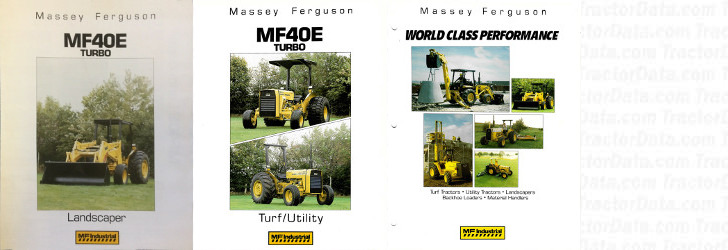

| References | |
 | |
| MF40E Turbo Landscaper published in 1986, by Massey Ferguson | |
| MF40E Turbo Turf/Utility published in 1986, by Massey Ferguson | |
| Turf Tractors - Utility Tractors - Landscapers - Backhoe Loaders - Material Handlers published in 1987, by Massey Ferguson |
