Massey Ferguson 30E
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Industrial tractor | |
| Built in Coventry, England | |
| Massey Ferguson 30E Engine | |
| Perkins 2.5L 3-cyl diesel | |
| Fuel tank | 12.7 gal 48.1 L |
 Engine details ... | |
| Massey Ferguson 30E Transmissions | |
| 4-speed power shuttle | |
| 6-speed mechanical shuttle | |
 Transmission details ... |
| Massey Ferguson 30E Power | |
| Engine (net) | 45 hp 33.6 kW |
| PTO (claimed) | 37 hp (540rpm) 27.6 kW |
| 41.2 hp (max) 30.7 kW | |
| Mechanical | |
| Two-wheel drive | |
| Final drives | outboard planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Available four-post ROPS. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 4.4 gpm (hitch) 16.7 lpm |
| 19 gpm (loader) 71.9 lpm | |
| 21.6 gpm (backhoe-loader) 81.8 lpm | |
| Tractor hitch | |
| Control | position and draft control |
| Rear lift | 3232 lbs 1466 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1788 |
| Dimensions & Tires | |
| Wheelbase | 74.8 inches 189 cm |
| Weight | 4350 to 10680 pounds |
| Front tire | 7.50/8.00x16 |
| Rear tire | 14.9x24 |
 Full dimensions and tires ... | |
| Massey Ferguson 30E attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 30E Serial Number Location | |
 | |

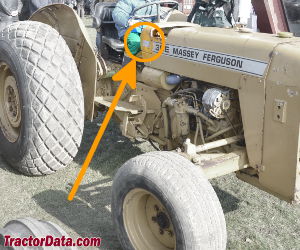

| Serial number plate located on the right side of the Massey 30E dashboard. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 35 |
| Battery CCA | 340 |
| Battery volts | 12 |
| References | |
 | |

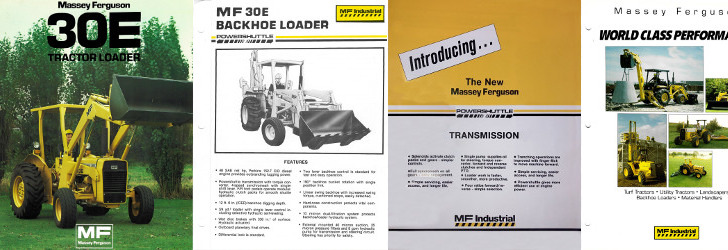

| 30E Tractor Loader published in 1984, by Massey Ferguson | |
| MF 30E Backhoe Loader published in 1986, by Massey Ferguson | |
| Introducting the New Power Shuttle Transmission published in 1985, by Massey Ferguson | |
| Turf Tractors - Utility Tractors - Landscapers - Backhoe Loaders - Material Handlers published in 1987, by Massey Ferguson |
