Ford 4000 HD Transmission


Ford 4000 HD industrial tractor photo
1960 - 1965
Model year
Industrial tractor
Transmissions overview
4-speed unsynchronized
12-speed
4-speed
10-speed power shift
Transmission
Type:unsynchronized
Gears:4 forward and 1 reverse
Oil capacity:6 qts
5.7 L
Speeds
With 14.9-24 rear tires.

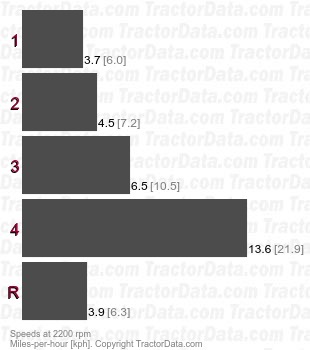

4000 HD  unsynchronized speeds
Transmission
Transmission:Over-Under
Gears:12 forward and 3 reverse
Four-speeds with over-, under-, and direct-drive.
Speeds
With 14.9-24 rear tires.

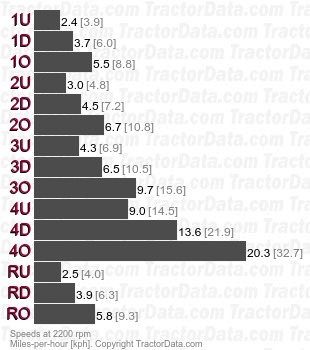

4000 HD Over-Under  speeds
Transmission
Transmission:Reversing
Gears:4 forward and reverse
Transmission
Transmission:Select-O-Speed
Type:power shift
Gears:10 forward and 2 reverse
Oil capacity:12 qts
11.4 L
Speeds
With 14.9-24 rear tires.

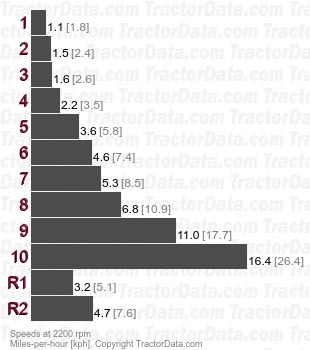

4000 HD Select-O-Speed power shift speeds
