John Deere 401D
|
|
| Production | |
| Manufacturer | John Deere |
| Industrial tractor | |
| John Deere 401D Engine | |
| John Deere 3.6L 4-cyl diesel | |
 Engine details ... |
| John Deere 401D Transmissions | |
| 8-speed collar shift | |
| 8-speed power shuttle | |
 Transmission details ... |
| John Deere 401D Power | |
| Engine (gross) | 66 hp 49.2 kW |
| Engine (net) | 62 hp 46.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | mechanical rear OptOptional |
| Hydraulic wet disc brakes | |
| Two-post ROPS. | |

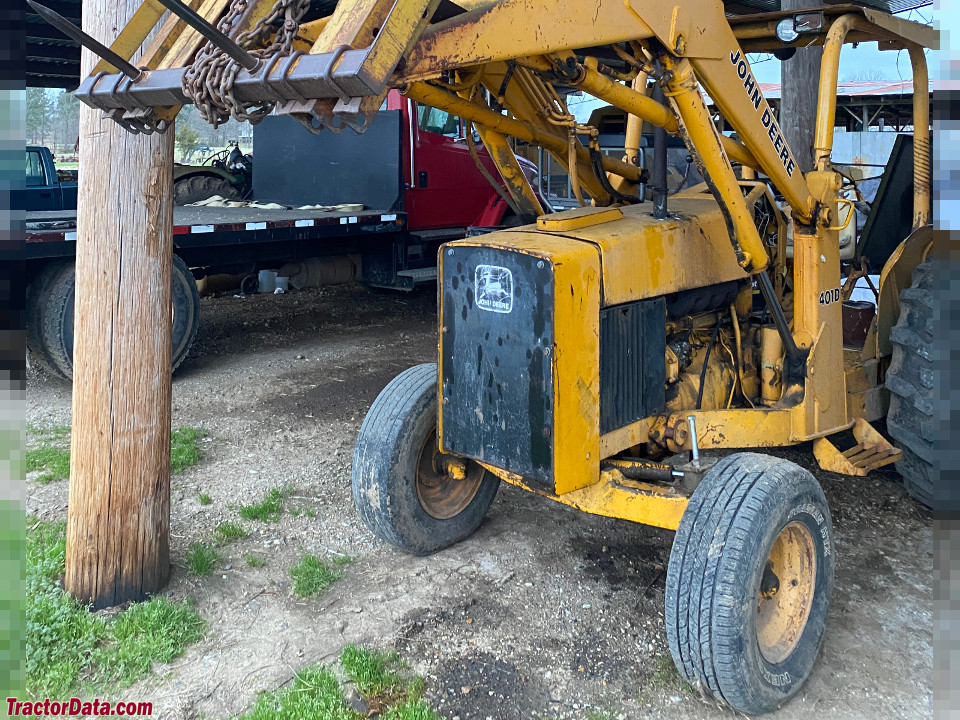

| Photos | |
 | |
 John Deere 401D photos... | |
| Capacity | |
| Fuel | 19.5 gal 73.8 L |
| Hydraulic system | 8.5 gal 32.2 L |
| Hydraulics | |
| Type | closed center |
| Capacity | 8.5 gal 32.2 L |
| Pressure | 2250 psi 155.1 bar |
| Pump flow | 13 gpm 49.2 lpm |
| 28 gpm (loader-backhoe) 106.0 lpm | |
| Tractor hitch | |
| Rear Type | II OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Rear PTO Type | 540 |
| Mid PTO Type | 1000 OptOptional |
| Dimensions & Tires | |
| Wheelbase | 82 inches 208 cm |
| Weight | 5120 to 10800 pounds |
| Front tire | 11L-15 |
| Rear tire | 17.5L-24 |
 Full dimensions and tires ... | |
| John Deere 401D attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 35 |
| Batteries | 1 |
| 2 OptOptional | |
| Battery volts | 12 |
| References | |
 | |
| 401D Tractor published in 1983, by John Deere | |
| 401D Loader Backhoe published in 1983, by John Deere |
