Ford 231

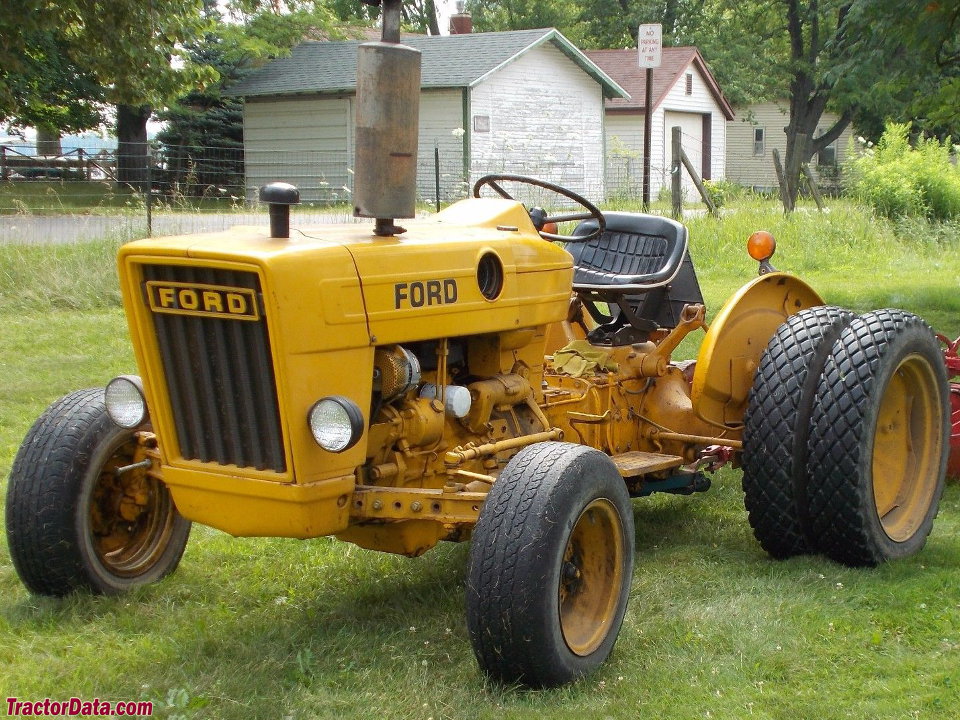

Ford 231 industrial tractor photo
1975 - 1978
Industrial tractor
Series map:
231
531
36.5hp
59.5hp
Production
ManufacturerFord
Industrial tractor
Ford 231 Engines
Ford 2.6L 3-cyl diesel
Ford 2.6L 3-cyl gasoline
Fuel tank13 gal
49.2 L
Engine details ...
Ford 231 Power
Engine (gross)36.5 hp
27.2 kW
Engine (net)34.3 hp
25.6 kW
Mechanical
Two-wheel drive
Steeringmanual
Steeringpower OptOptional
Mechanical wet disc brakes
Open operator station. Two-post ROPS available.
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear PTOtransmission
 live *Optional with 8-speed transmission
Rear PTO Type540 (1.375)
Engine RPM540@1800
Dimensions & Tires
Wheelbase75.8 inches
192 cm
Weight3530 lbs
1601 kg
Front tire6.00x16
Rear tire8.30x24
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps32
 51 OptOptional
Charging volts12
Battery volts12
Gas Battery AH77
Diesel Battery AH128
References

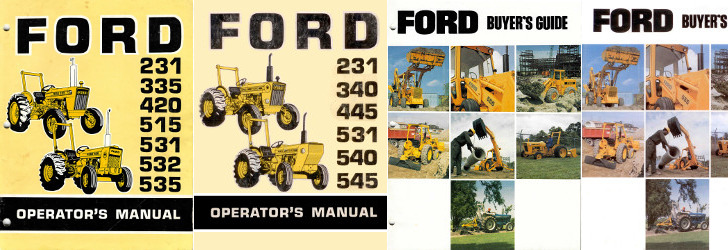

231 references literature
231 335 420 515 531 532 535 Operator's Manual (SE 3503) published in 1975
231 340 445 531 540 545 Operator's Manual (SE-3718) published in 1978
Buyer's Guide published in 1979, by Ford
Buyer's Guide published in 1980, by Ford
