Kubota B2401
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Original price was $11,895 in 2021 | |
| Variants | |
| B2401DTN | narrow |
| Kubota B2401 Engine | |
| Kubota 1.1L 3-cyl diesel | |
| Fuel tank | 6.1 gal 23.1 L |
 Engine details ... | |
| Kubota B2401 Transmission | |
| 9-speed gear | |
 Transmission details ... |
| Kubota B2401 Power | |
| Engine (gross) | 21.9 hp 16.3 kW |
| PTO (claimed) | 19.2 hp 14.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. | |
| Photos | |
 | |
 Kubota B2401 photos... | |
| Hydraulics | |
| Type | open center |
| Rear valves | 1 |
| Front valves | 1 OptOptional |
| Pump flow | 4.4 gpm 16.7 lpm |
| Total flow | 7 gpm 26.5 lpm |
| Steering flow | 2.6 gpm 9.8 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1653 lbs 749 kg |
| Rear lift (at 24"/610mm) | 1290 lbs 585 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Clutch | overrunning |
| Rear PTO Type | 540/1000 (1.375) |
| 540/980 (1.375) | |
| Engine RPM | 540@2505 |
| 1000@2560 | |
| Mid PTO Type | 2500 |
| Dimensions & Tires | |
| Wheelbase | 61.4 inches 155 cm |
| Weight | 1521 lbs 689 kg |
| Front tire | 6-12 |
| Rear tire | 9.5-16 |
 Full dimensions and tires ... | |
| Kubota B2401 attachments | |
| 54" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

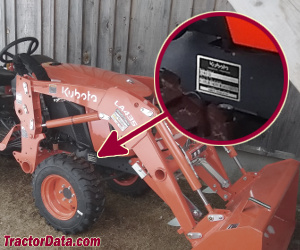

| B2401 Serial Number Location | |
 | |
| Serial number decal on the right side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging amps | 40 |
| Battery volts | 12 |
