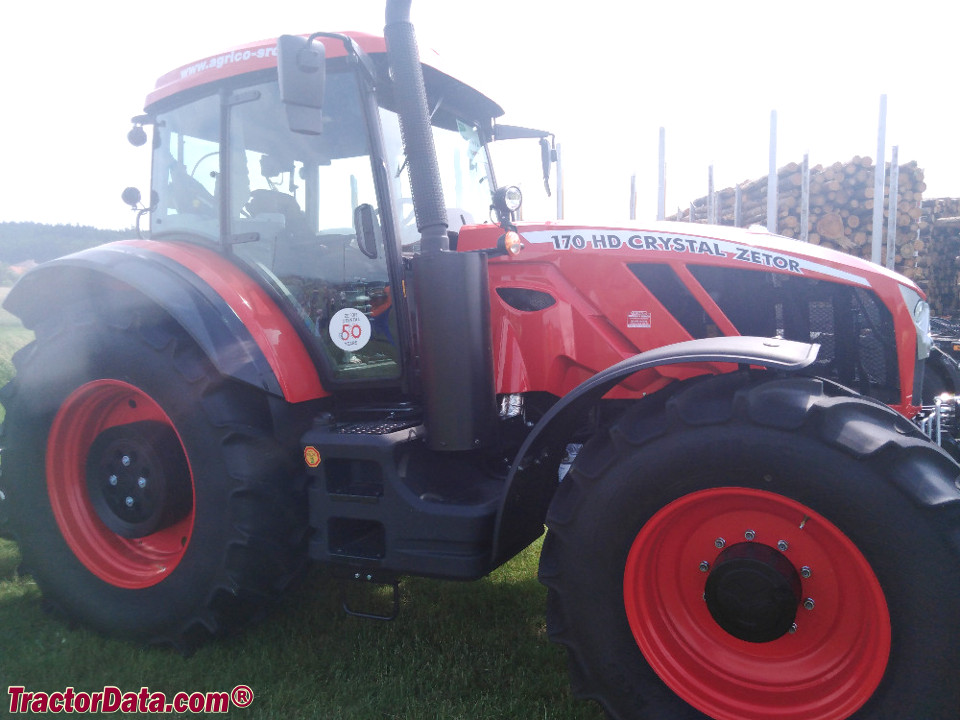

Zetor Crystal 170 HD
| | 2018 - |
| Crystal Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Zetor
|
| Type: | Row-Crop tractor
|
| Factory: | Brno, Czech Republic
|
| Zetor Crystal 170 HD Power |
| Engine (gross): | 163.6 hp
122.0 kW
|
| Engine (max): | 171 hp
127.5 kW
|
| PTO (claimed): | 139 hp
103.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Trailer brakes: | pneumatic*Optional
|
| | hydraulic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 30-speed three-speed power shift
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 22.5 gpm
85.2 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 17534 lbs
7953 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000/1000E
|
| Mid PTO: | independent*Optional
|
| Mid RPM: | 1000
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | July 19, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
