John Deere 6110SE Transmission
|
|
| Transmissions overview | |
| 12-speed synchronized | |
| 16-speed power shuttle | |
| 16-speed four-speed power shift |
| Transmission | |
| Transmission: | SynchroPlus |
| Type: | synchronized |
| Gears: | 12 forward and 4 reverse |
| Clutch: | 225mm wet discs |
| Oil change: | 250 h |
| Three synchronized gears, plus reverse, in four synchronized ranges. | |

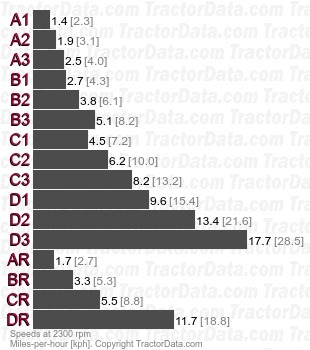

| Speeds | |
| With 14.9-38 rear tires. | |
|
| Transmission | |
| Transmission: | Power Reverser |
| Type: | power shuttle |
| Gears: | 16 forward and reverse |
| Clutch: | 225mm wet discs |
| Four synchronized gears in four synchronized ranges with power shuttle. | |

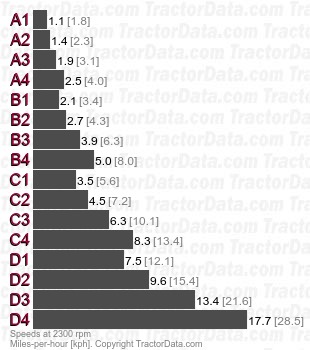

| Speeds | |
| With 14.9-38 rear tires and 30KPH transmission option. Rear speeds are 20% faster than forward. | |
|
| Transmission | |
| Transmission: | PowerQuad |
| Type: | four-speed power shift |
| Gears: | 16 forward and reverse |
| Clutch: | 225mm wet discs |
| Four power shift gears in four synchronized ranges with power shuttle. | |

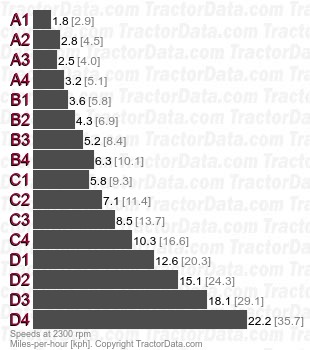

| Speeds | |
| With 14.9-38 rear tires and 40KPH transmission option. Rear speeds are 20% faster than forward. | |
|
