Fendt 411 Vario

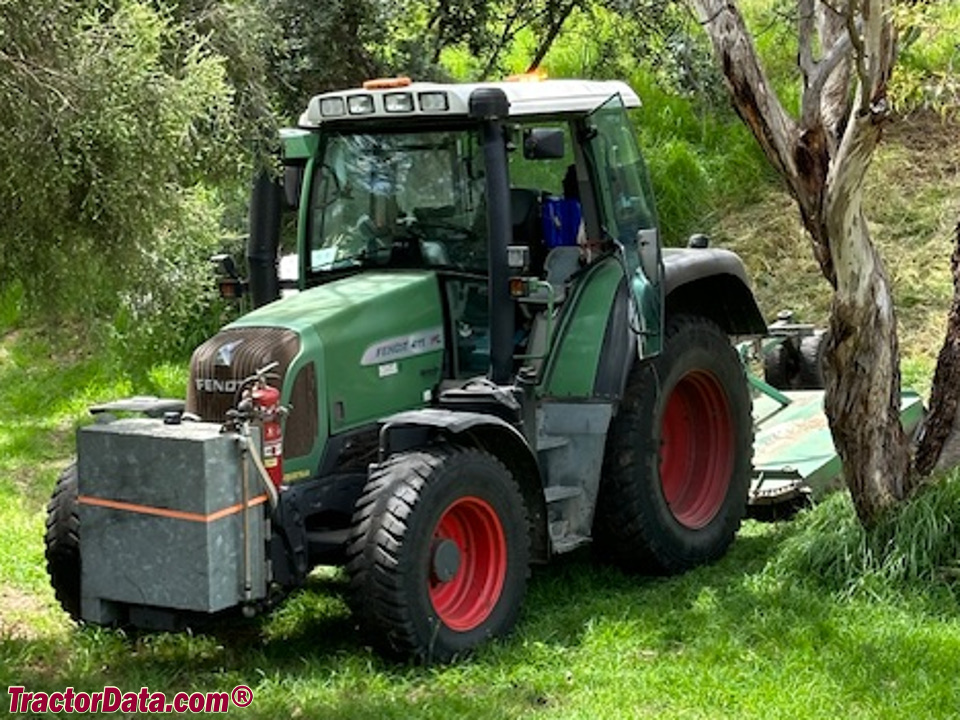

Fendt 411 Vario tractor photo
2006 - 2012
400 Vario Series
Row-Crop tractor
Series map:
411 Vario
412 Vario
84.0kw
91.0kw
Production
ManufacturerFendt (a part of AGCO)
Row-Crop tractor
Fendt 411 Vario Engine
Deutz 4.0L 4-cyl diesel
Fuel tank64.7 gal
244.9 L
Engine details ...
Fendt 411 Vario Transmission
continuously variable transmission
Transmission details ...
Fendt 411 Vario Power
Engine (gross)112.7 hp
84.0 kW
Engine (net)99.2 hp
74.0 kW
Engine (max)118 hp
88.0 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with heat. Air-conditioning optional.
Hydraulics
Typeload sensing
Pressure2900 psi
200.0 bar
Pump flow19.8 gpm
74.9 lpm
 29.1 gpmOptOptional
110.1 lpm
Tractor hitch
Rear TypeIII/II
Rear lift16424 lbs
7449 kg
Front lift6834 lbs
3099 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E/1000
Front PTOindependent OptOptional
Front PTO Type540
 1000
Dimensions & Tires
Wheelbase95.2 inches
241 cm
Weight11905 lbs
5400 kg
Front tire480/65R24
Rear tire540/65R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps150
Charging volts14
Battery volts12
Battery AH90
References
411 Vario references literature
Fendt 400 Vario published in 2006
Fendt 400 Vario published in 2008
Fendt 400 Vario published in 2010
