| | 2003 - 2008 |
| Farmer 300 Series |
|
| Transmissions overview |
| 21-speed synchronized |
| 21-speed shuttle |
| Transmission |
| Type: | synchronized
|
| Gears: | 21 forward and 6 reverse
|

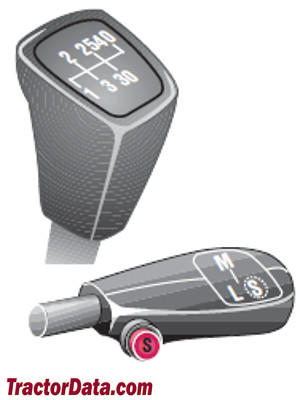

| Three gears (1-3) plus reverse (R) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears. |
| Transmission |
| Type: | shuttle
|
| Gears: | 21 forward and reverse
|
| Three gears (1-3) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears and mechanical shuttle. |

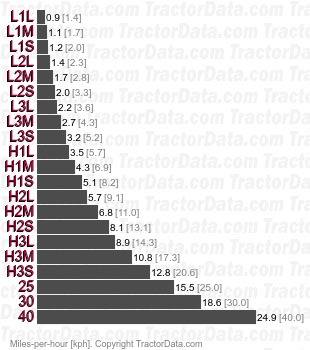

| Speeds |
|
