Tractors > Massey Ferguson > 4709M

Massey Ferguson 4709M



Massey Ferguson 4709M tractor photo
2020 -
4700M Series
Utility tractor
Series map:
10540
4709M
4710M
78.3kw
68.6kw
74.6kw
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Massey Ferguson 4709M Engine
AGCO Power 3.3L 3-cyl diesel
ROPS Fuel tank27.7 gal
104.8 L
Cab Fuel tank33 gal
124.9 L
ROPS Exhaust fluid (DEF)3.4 gal
12.9 L
Cab Exhaust fluid (DEF)4 gal
15.1 L
Engine details ...
Massey Ferguson 4709M Transmissions
12-speed mechanical shuttle
12-speed power shuttle
24-speed two-speed power shift
Transmission details ...
Massey Ferguson 4709M Power
Engine92 hp
68.6 kW
Mechanical
Two- or four-wheel drive
Wet disc brakes
Two-post folding ROPS. Cab optional.
Photos

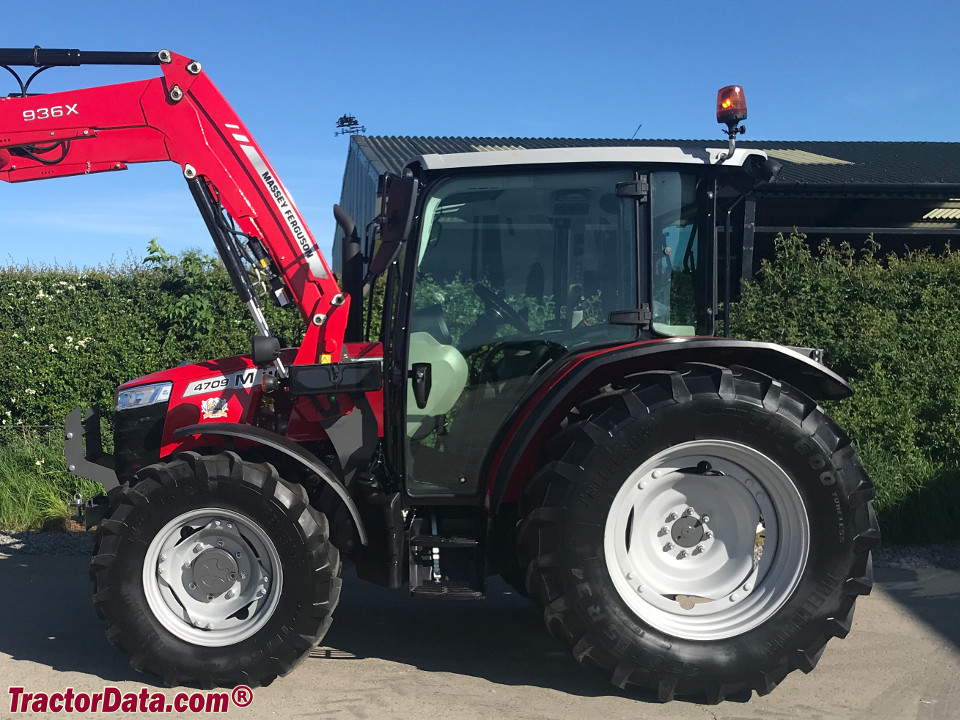

Massey Ferguson 4709M
Massey Ferguson 4709M photos...
Hydraulics
Pressure2901 psi
200.0 bar
Pump flow17.2 gpm
65.1 lpm
Tractor hitch
Rear TypeII
Rear lift6614 lbs
3000 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear RPM540 (1.375)
 540/1000 (1.375)OptOptional
Engine RPM540@1920
540E@1560
1000@1964
Dimensions & Tires
Wheelbase88.6 inches
225 cm
Weight6506 to 8708 pounds
Full dimensions and tires ...
Massey Ferguson 4709M attachments
front-end loader
Attachment details ...
References
4709M references literature
MF 4700 M published in 2020, by Massey Ferguson
