| Transmissions overview |
| 32-speed two-speed power shift |
| 12-speed power shuttle |
| Transmission |
| Type: | two-speed power shift
|
| Gears: | 32 forward and reverse
|
| Clutch: | wet disc
|
| Four synchronized gears (1-4) in four ranges with two-speed push-button power shift. Left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range. |

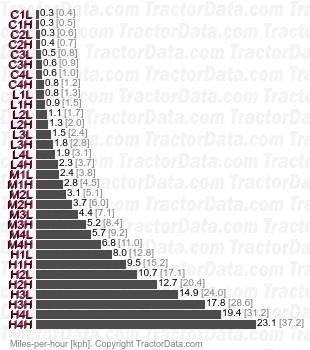

| Speeds |
|
| Transmission |
| Type: | power shuttle
|
| Gears: | 12 forward and reverse
|
| Clutch: | dry disc
|
| Four synchronized gears in four ranges with left-hand power shuttle. Tractor must be stopped, and clutch used, to shift range. |

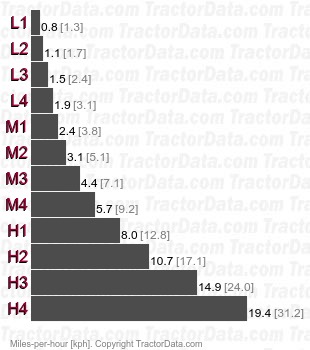

| Speeds |
|
