CaseIH 685 Orchard Transmission
|
|
| Transmission options | |
| 8-speed synchromesh | |
| 16-speed two-speed power shift |
| Transmission | |
| Type | synchromesh |
| Gears | 8 forward and 4 reverse |
| Clutch | 305mm dry disc |
| Oil capacity | 35.9 qts 34.0 L |

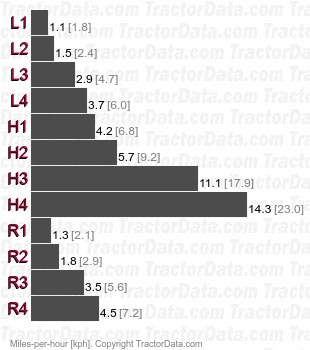

| Speeds | |
| With 18.4x16.1 rear tires. | |
|
| Transmission | |
| Type | two-speed power shift |
| Gears | 16 forward and 8 reverse |

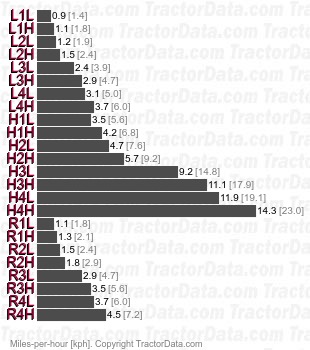

| Speeds | |
| With 18.4x16.1 rear tires. | |
|
