| | 1985 - 1991 |
| Orchard/Vineyard tractor |
|
| Transmissions overview |
| 8-speed synchromesh |
| 16-speed two-speed power shift |
| Transmission |
| Type: | synchromesh
|
| Gears: | 8 forward and 4 reverse
|
| Clutch: | 279mm dry disc
|
| Oil capacity: | 35.9 qts
34.0 L
|

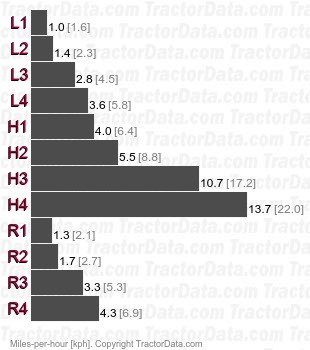

| Speeds |
| With 18.4x16.1 rear tires. |
|
| Transmission |
| Type: | two-speed power shift
|
| Gears: | 16 forward and 8 reverse
|

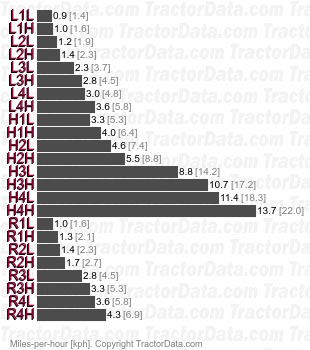

| Speeds |
| With 18.4x16.1 rear tires. |
|
