John Deere 8RX 410
|
|
| Production | |
| Manufacturer | John Deere |
| Agricultural Crawler tractor | |
| Built in Waterloo, Iowa, USA | |
| Original price was $561,503 in 2020 | |
| John Deere 8RX 410 Engine | |
| John Deere 9.0L 6-cyl diesel | |
| Fuel tank | 245 gal 927.3 L |
| Exhaust fluid (DEF) | 9.8 gal 37.1 L |
 Engine details ... | |
| John Deere 8RX 410 Transmission | |
| 23-speed full power shift | |
 Transmission details ... |
| John Deere 8RX 410 Power | |
| Engine (gross) | 410 hp 305.7 kW |
| Engine (max) | 443 hp 330.3 kW |
| PTO (claimed) | 310 hp 231.2 kW |
| Drawbar (tested) | 314.59 hp 234.6 kW |
| PTO (tested) | 381.53 hp 284.5 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Differential lock | electro-hydraulic front and rear |
| Cab standard with air-conditioning. | |

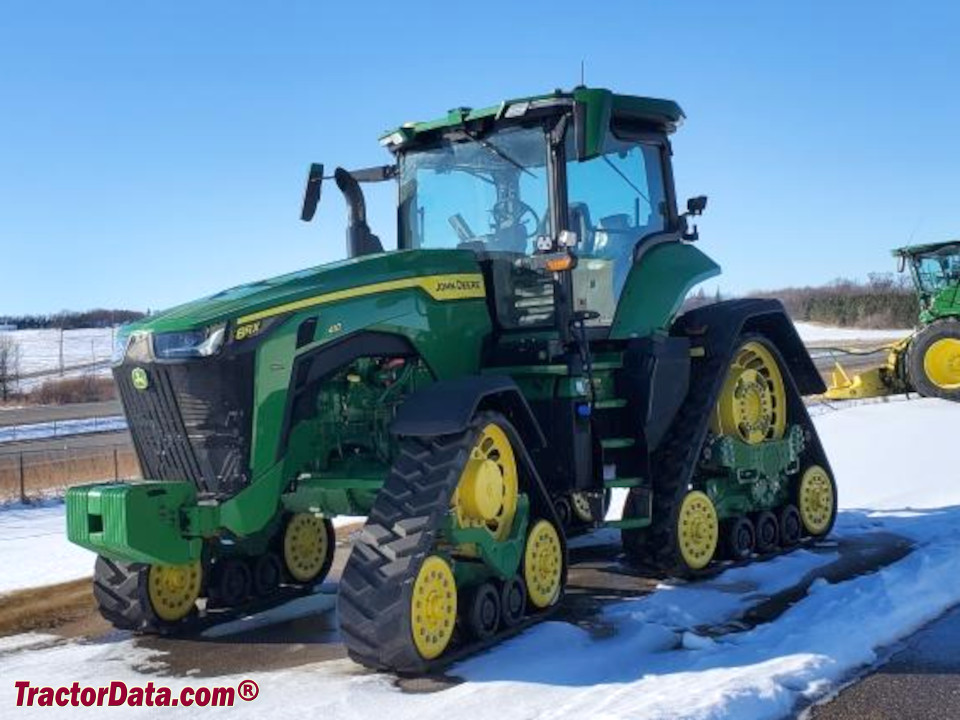

| Photos | |
 | |
 John Deere 8RX 410 photos... | |
| Hydraulics | |
| Type | closed-center pressure flow compensated |
| Pressure | 2958 psi 204.0 bar |
| Rear valves | 4 to 6 |
| Pump flow | 60 gpm 227.1 lpm |
| 84 gpmOptOptional 317.9 lpm | |
| SCV flow | 35 gpm (1.5) 132.5 lpm |
| 42 gpm (1.75) 159.0 lpm | |
| Tractor hitch | |
| Rear Type | IVN/III |
| Control | electro-hydraulic draft sensing |
| Rear lift (at 24"/610mm) | 20000 lbs 9072 kg |
| 15200 lbsOptOptional 6894 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| Engine RPM | 1000@2000 |
| Dimensions & Tracks | |
| Wheelbase | 127.4 inches 323 cm |
| Weight | 43000 lbs 19504 kg |
| 18-inch tracks | |
 Full dimensions and tracks ... | |

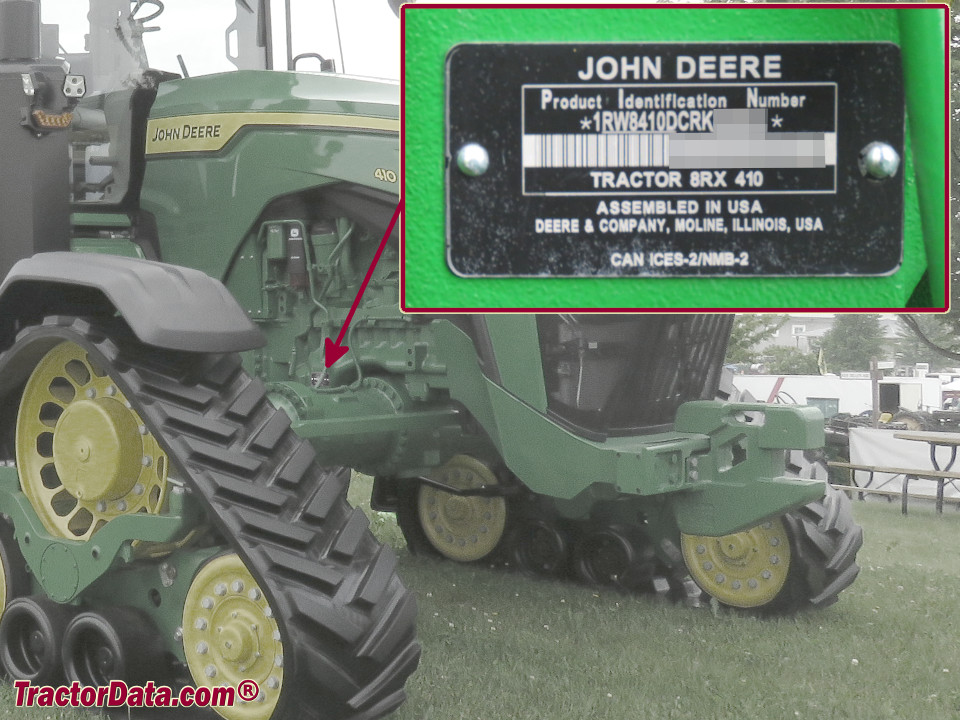

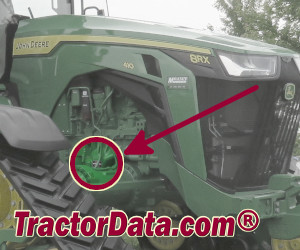

| 8RX 410 Serial Number Location | |
 | |
| Serial number plate on the right side of the frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 250 |
| 330 OptOptional | |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
| Battery Group | 31 |
