John Deere 5425 Transmission

John Deere 5425 tractor photo
2006 - 2012
5025 Series
Utility tractor
Gears:9 forward and 3 reverse
Clutch:279mm dry disc
Oil capacity:40.2 qts
38.0 L
Three gears (1-3) plus reverse (R) in four ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.
With 16.9-30 rear tires.

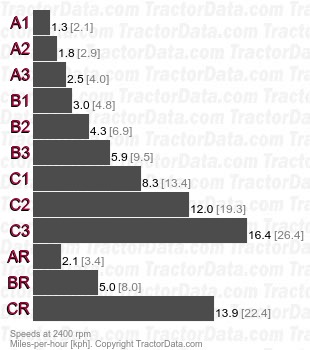

5425  gear speeds
