Fendt Farmer 260V

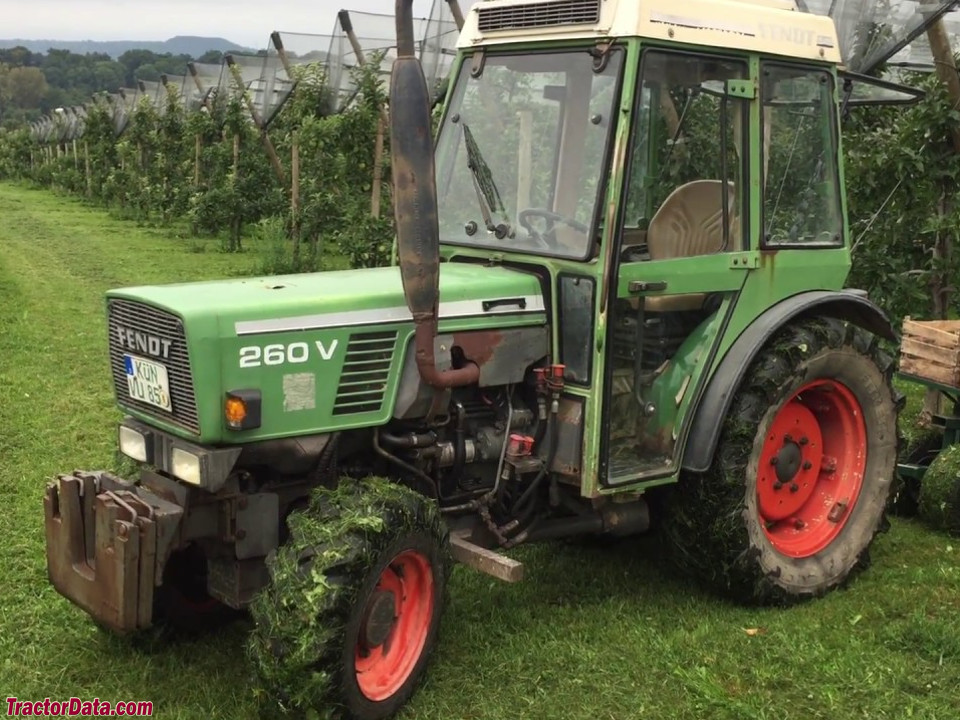

Fendt Farmer 260V tractor photo
1987 - 2002
Farmer 200 Series
Orchard/Vineyard tractor
Series:Farmer 250VFarmer 260VFarmer 270V
Production
Manufacturer:Fendt
Type:Orchard/Vineyard tractor
Fendt Farmer 260V Power
Engine:59 hp
44.0 kW
Fendt Farmer 260V Engine
KHD 3.1L 3-cyl diesel
Fuel tank:15.85 gal
60.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:mechanical drum
Cab:Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.
Transmission:20-speed
Transmission details ...
Hydraulics
Pressure:2611 psi
180.0 bar
Total flow:12.9 gpm
48.8 lpm
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750
 540/750/1000*Optional
Dimensions & Tires
2WD Wheelbase:77.8 inches
197 cm
4WD Wheelbase:77.5 inches
196 cm
Weight:4233 to 4652 pounds
Front tire:6.00-16
2WD Rear tire:11.2-24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Charging volts:14
Battery volts:12
Battery AH:88
