| | 2005 - 2007 |
| 2400 Series | | Utility tractor |
|
| Transmissions overview |
| 15-speed |
| 15-speed power shuttle |
| 30-speed two-speed power shift |
| Transmission |
| Gears: | 15 forward and reverse
|
| Clutch: | dry disc
|
| Five gears in three ranges with mechanical shuttle. |

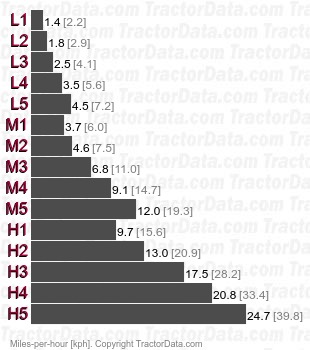

| Speeds |
| With 16.9R34 rear tires. |
|
| Transmission |
| Type: | power shuttle
|
| Gears: | 15 forward and reverse
|
| Clutch: | wet disc
|
| Transmission |
| Transmission: | Speedshift
|
| Type: | two-speed power shift
|
| Gears: | 30 forward and reverse
|
| Speedshift adds a two-speed power shift to the basic shuttle transmission. Optional creeper range expands total gears to 60 in each direction. |
