Yanmar F535 Transmission


Yanmar F535 tractor photo
1989 - ????
Power Forte Series
Utility tractor
Series:F475F535F605
Transmissions overview
9-speed
24-speed shuttle
Transmission
Gears:9 forward and 3 reverse
Three gears, plus reverse, in three ranges. Additional creeper doubles the number of available gears.

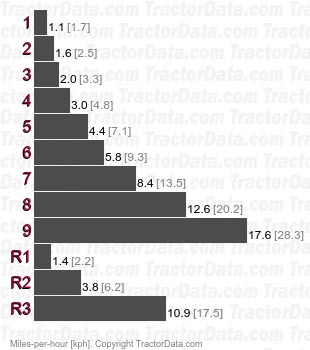

Speeds
F535   speeds
Transmission
Type:shuttle
Gears:24 forward and reverse
Clutch:Reverse speeds are 8% slower than forward.

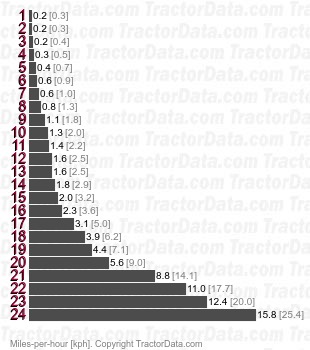

Speeds
F535  shuttle speeds
