| | 2016 - 2019 |
| XG Series | | Compact Utility tractor |
|
| Transmissions overview |
| 12-speed sync shuttle |
| hydrostatic |
| Transmission |
| Type: | sync shuttle
|
| Gears: | 12 forward and reverse
|
| Clutch: | dry disc
|
| Four gears in three ranges with left-hand shuttle lever. Tractor must be stopped, and clutch used, to shift gears or range. |
| Speeds |
| With 11.2-24 R1 rear tires. Reverse speeds are 5% slower than forward. |
|
| Transmission |
| Type: | hydrostatic
|
| Gears: | infinite (3-range) forward and reverse
|

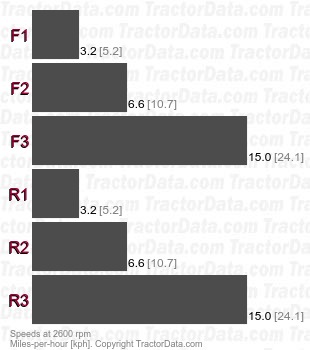

| Speeds |
| With 11.2-24 R1 rear tires. |
|
