LS XG3025 Transmission


LS XG3025 tractor photo
2016 - 2019
XG Series
Compact Utility tractor
Series:XG3025XG3135
MT225E
Transmissions overview
12-speed sync shuttle
hydrostatic
Transmission
Type:sync shuttle
Gears:12 forward and reverse
Clutch:dry disc
Four gears in three ranges with left-hand shuttle lever. Tractor must be stopped, and clutch used, to shift gears or range.
Speeds
With 11.2-24 R1 rear tires. Reverse speeds are 5% slower than forward.

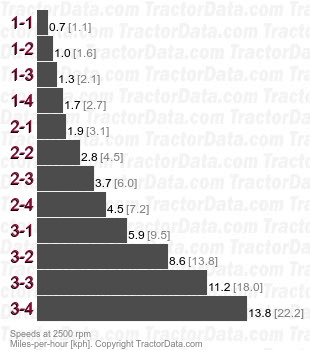

XG3025  sync shuttle speeds
Transmission
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Speeds
With 11.2-24 R1 rear tires.

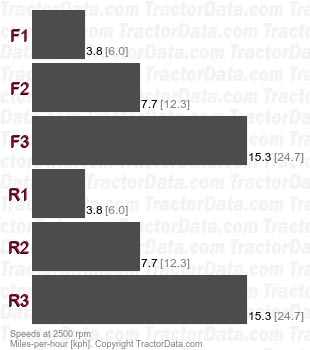

XG3025  hydrostatic speeds
