Claas Axion 820 - tests

Claas Axion 820 tractor photo
2018 -    Axion 800 Series
Row-Crop tractor
Series next:Claas Axion 830
Series back:Claas Axion 810
more Claas Axion 820 specifications...






OCED Tractor Test 2180:

Nebraska summary:1104

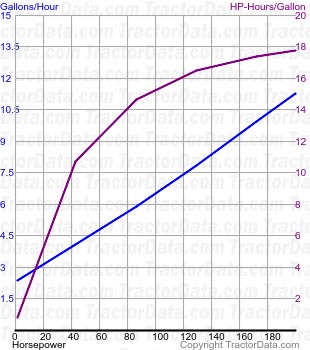

Axion 820 fuel use from test 1104
Test Date:September 12 - 29, 2017
Type:Diesel IVT 4WD
PTO power (max):215.43 hp [160.6 kW]
PTO fuel use (max):11.4 gal/hour [43.1 l/hour]
PTO power (rated engine speed):199.49 hp [148.8 kW]
PTO fuel use (engine speed):11.2 gal/hour [42.4 l/hour]
PTO power (rated PTO speed):212.48 hp [158.4 kW]
PTO fuel use (PTO speed):11.5 gal/hour [43.5 l/hour]
Drawbar power (max):168.63 hp [125.7 kW]
Drawbar fuel use (max):11.2 gal/hour [42.4 l/hour]
Drawbar pull (max):20171 lbs [9149 kg]
Max pull gear:4 KPH
Test report:PDF file
