Tractors > Huber > 20-36 Light Four

Huber 20-36 Light Four

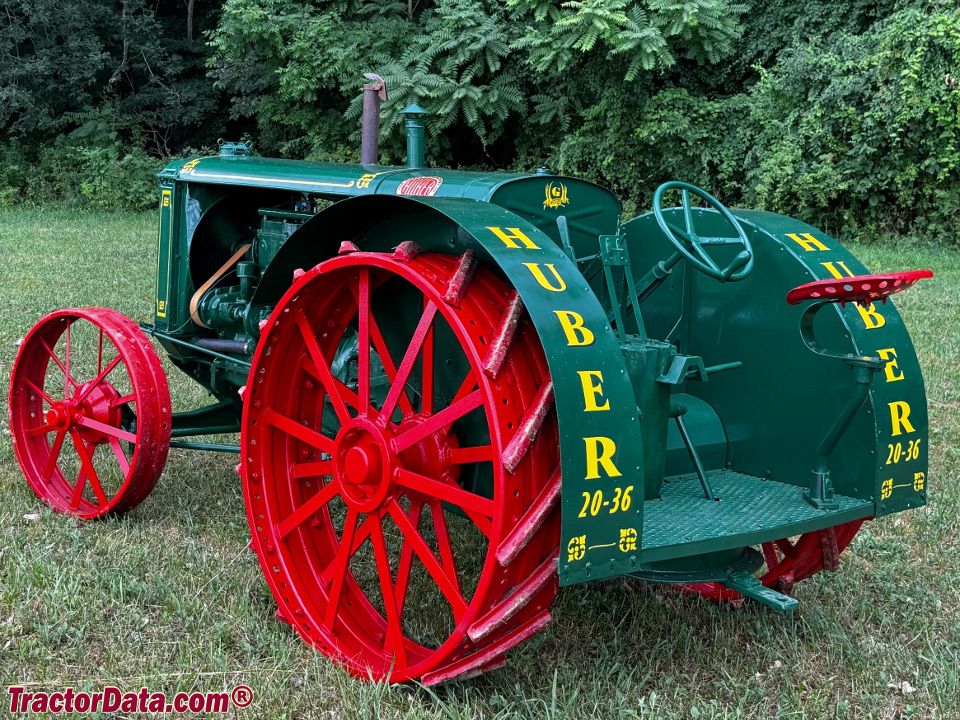

Huber 20-36 Light Four tractor photo
1928 - 1935
Standard-tread tractor






Production:

Manufacturer:Huber
Factory:Marion, Ohio, USA


Huber 20-36 Light Four Engine:

   Waukesha 7.3L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:32 gal [121.1 L]


Dimensions & Tires:

Wheelbase:81.5 inches [207 cm]
Weight:6575 lbs [2982 kg]
Front tire:34x6
Rear tire:50x12
full dimensions and tires ...


20-36 Light Four Serial Numbers:


how to read serial numbers...



Huber 20-36 Light Four Power:

Drawbar (claimed):20 hp [14.9 kW]
Belt (claimed):36 hp [26.8 kW]
Plows:4
Drawbar (tested):29.18 hp [21.8 kW]
Belt (tested):42.26 hp [31.5 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:17 inches [43 cm]
Width:8.5 inches [21 cm]
RPM:616
