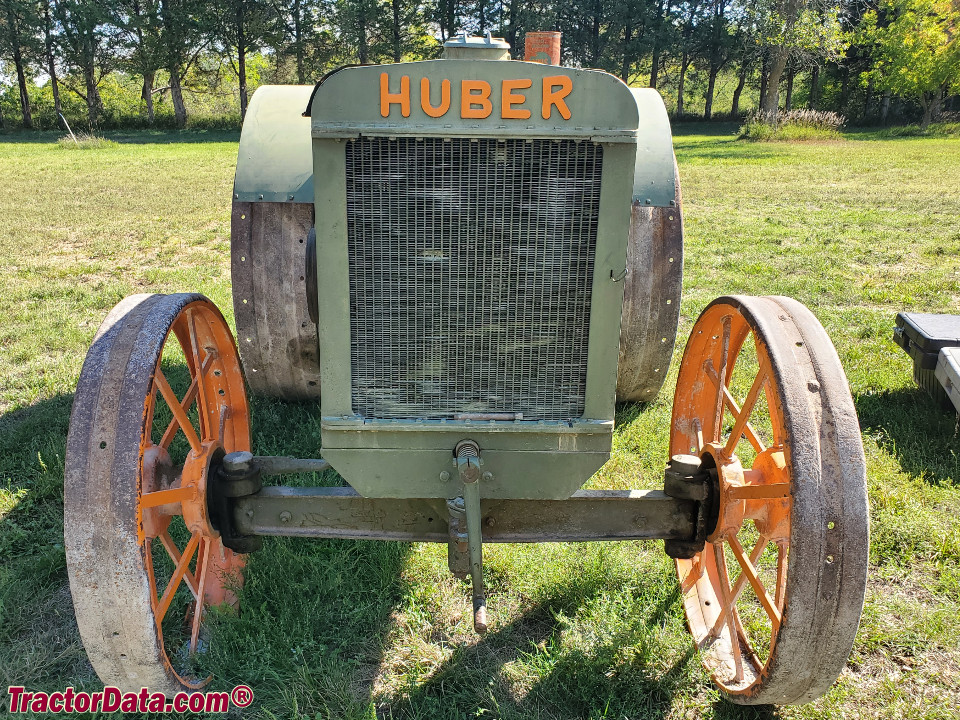

Huber 18-36 Super Four
|
|
Series map:
18-36 Super Four
20-40 Super Four
40.0hp*
44.4hp*
*Estimated engine power for comparison only.
| Production | |
| Manufacturer | Huber |
| Standard-tread tractor | |
| Built in Marion, Ohio, USA | |
| Huber 18-36 Super Four Engine | |
| Stearns 7.6L 4-cyl gasoline | |
| Fuel tank | 40 gal 151.4 L |
 Engine details ... | |
| Huber 18-36 Super Four Power | |
| Drawbar (claimed) | 18 hp 13.4 kW |
| Belt (claimed) | 36 hp 26.8 kW |
| Plows | 3 |
| Drawbar (tested) | 30.35 hp 22.6 kW |
| Belt (tested) | 36.18 hp 27.0 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Dimensions & Tires | |
| Wheelbase | 93 inches 236 cm |
| Weight | 8450 lbs 3832 kg |
| Front tire | 40x5 |
| Rear tire | 56x14 |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 15.5 inches 39 cm |
| Width | 8 inches 20 cm |
| RPM | 695 |
