Massey Ferguson 1760M

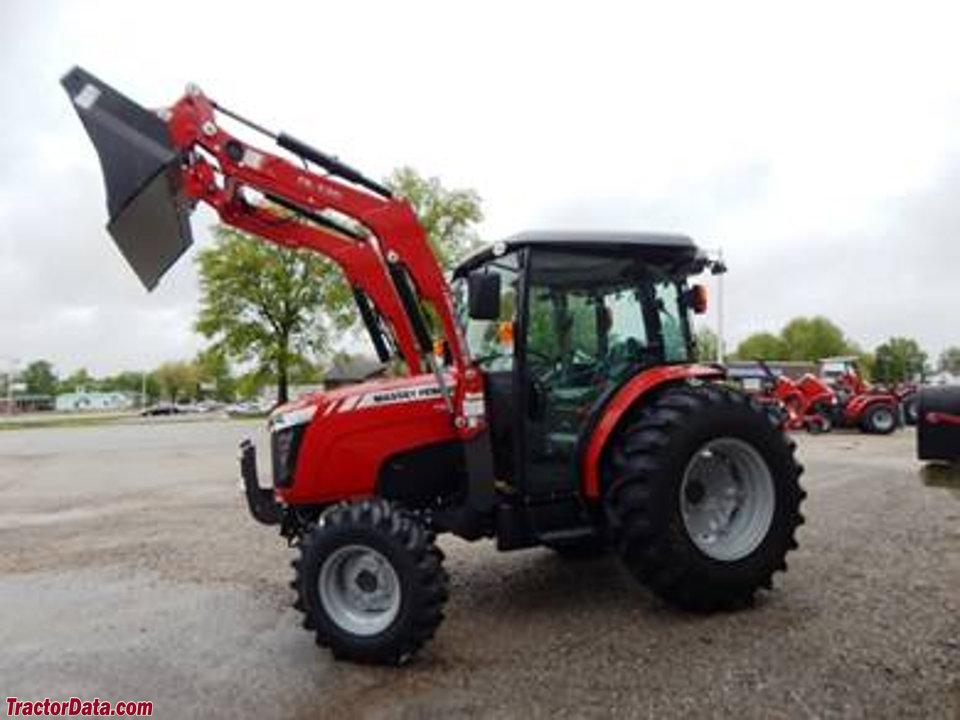

Massey Ferguson 1760M tractor photo
2018 -    1700M Series
Compact Utility tractor
Previous model:Massey Ferguson 1759
Series back:Massey Ferguson 1755M






Production:

Manufacturer:Massey Ferguson (a part of AGCO)
Original price (USD)
   $35,883 ()


Massey Ferguson 1760M Engine:

   Shibaura 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:14 gal [53.0 L]


3-Point Hitch:

Hydro Rear Type:I
Gear Rear Type:II
Control:position and draft control
Hydro Rear lift (at 24"/610mm):3086 lbs [1399 kg]
Gear Rear lift (at 24"/610mm):3307 lbs [1500 kg]
Rear Arms:telescopic draft link ends


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent*Optional
Mid RPM:1916


Dimensions & Tires:

Wheelbase:77.2 inches [196 cm]
Weight:3968 to 4674 pounds
Front tire:9.5x16
Rear tire:16.9x26
full dimensions and tires ...


Massey Ferguson 1760M attachments:

 front-end loader
all 1760M attachments ...


1760M Serial Numbers:


how to read serial numbers...



Massey Ferguson 1760M Power:

Engine:59.9 hp [44.7 kW]
Gear PTO (claimed):46.1 hp [34.4 kW]
Hydro PTO (claimed):44.4 hp [33.1 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Final drives:bull gear
Differential lock:rear standard
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional. Deluxe cab available.


Hydraulics:

Type:open center
Rear valves:3*Optional
Hydro Pump flow:12.1 gpm [45.8 lpm]
Gear Pump flow:13.3 gpm [50.3 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
