Tractors > Massey Ferguson > 1755M

Massey Ferguson 1755M

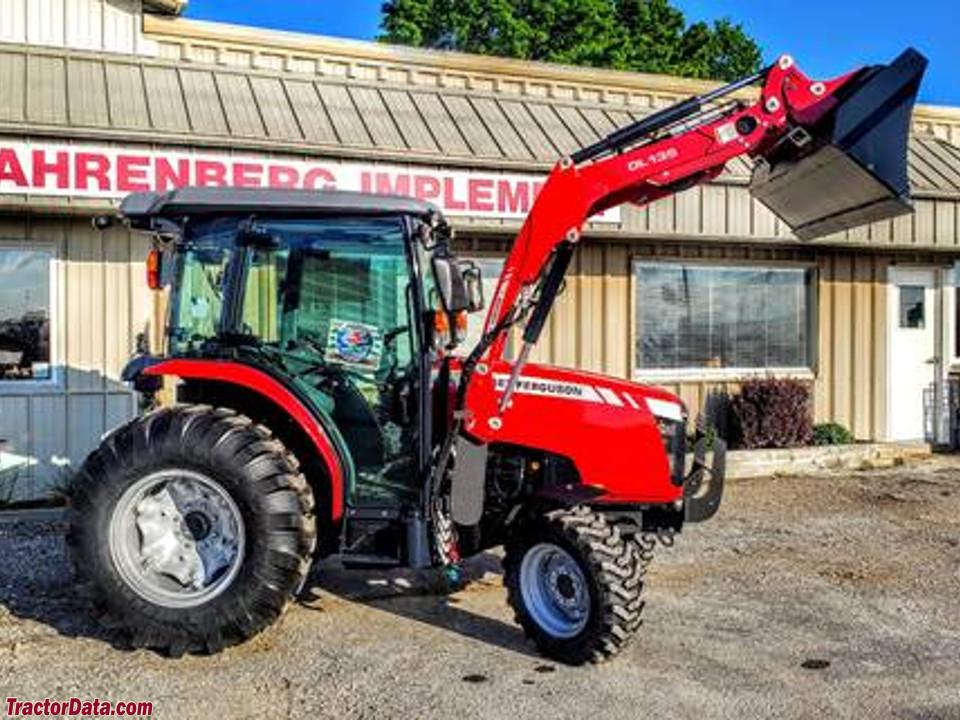

Massey Ferguson 1755M tractor photo
2018 -    1700M Series
Compact Utility tractor
Previous model:Massey Ferguson 1758
Series next:Massey Ferguson 1760M
Series back:Massey Ferguson 1750M






Production:

Manufacturer:Massey Ferguson (a part of AGCO)
Original price (USD)
   $32,885 (2019 )


Massey Ferguson 1755M Engine:

   Shibaura 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:14 gal [53.0 L]


3-Point Hitch:

Rear Type:I
Control:position and draft control
Rear lift (at 24"/610mm):2535 lbs [1149 kg]
Rear Arms:telescopic draft link ends


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent*Optional
Mid RPM:1916


Dimensions & Tires:

Wheelbase:77.2 inches [196 cm]
Weight:3968 to 4534 pounds
Front tire:9.5x16
Rear tire:13.6x28
full dimensions and tires ...


Massey Ferguson 1755M attachments:

 front-end loader
all 1755M attachments ...


1755M Serial Numbers:


how to read serial numbers...



Massey Ferguson 1755M Power:

Engine:53.9 hp [40.2 kW]
Gear PTO (claimed):41.3 hp [30.8 kW]
Hydro PTO (claimed):39.7 hp [29.6 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Final drives:bull gear
Differential lock:rear standard
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional.


Hydraulics:

Type:open center
Rear valves:3*Optional
Pump flow:12.1 gpm [45.8 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
